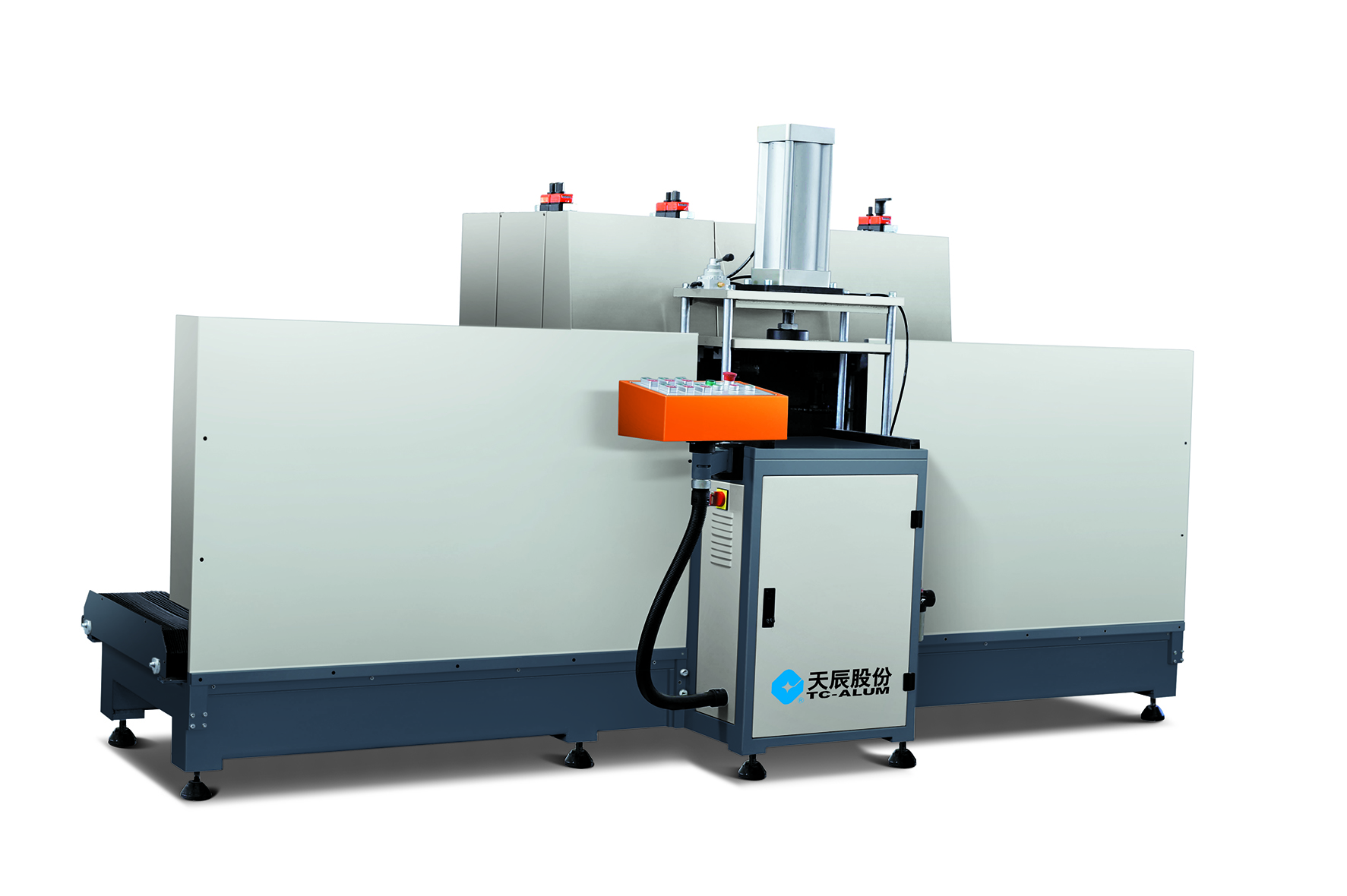

Main Purpose
1. New type of curtain wall processing machine which applicated to various kinds of profiles end and step surface.
2. It can realize multi-quantity and multi-batch of longer profile molding under the way of profile fixed and tools moved.

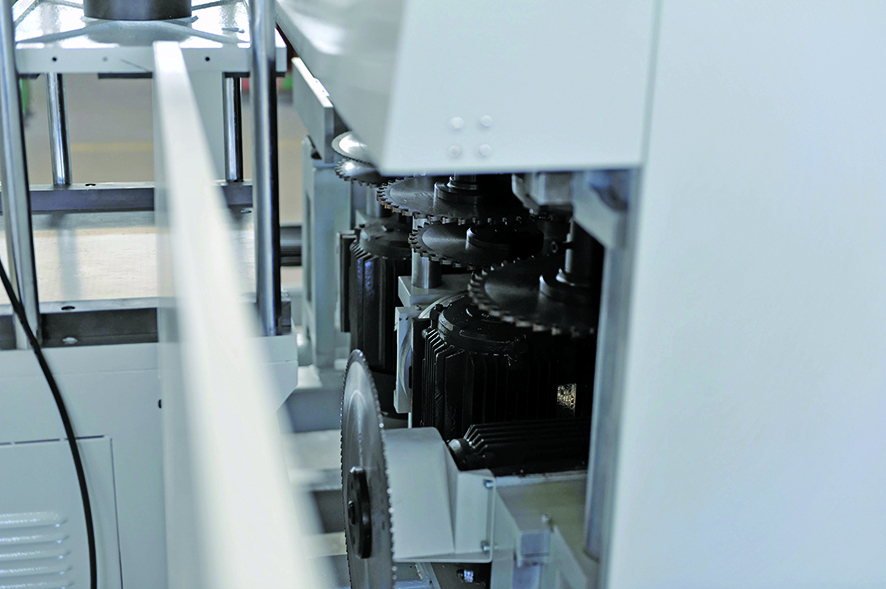

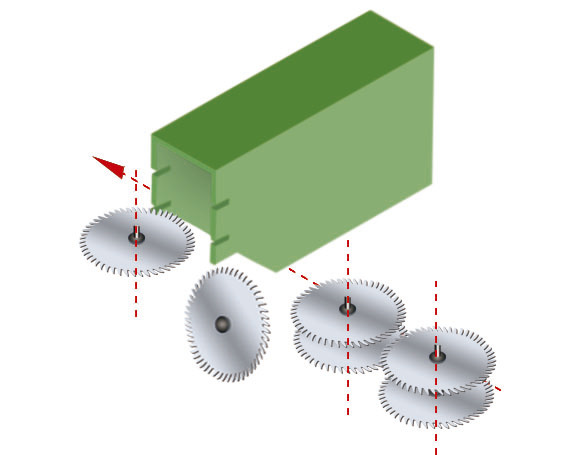

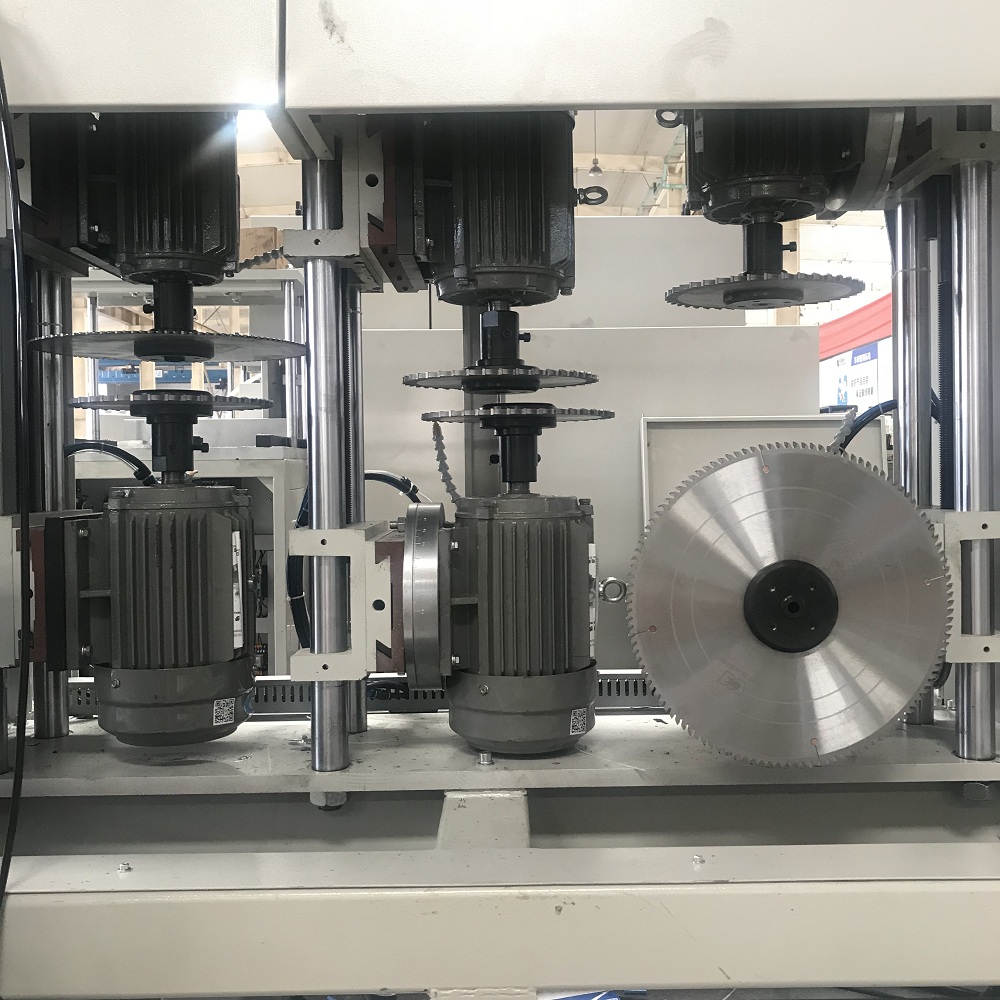

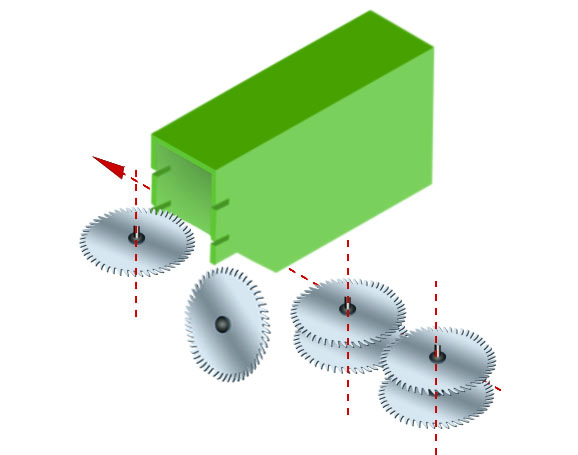

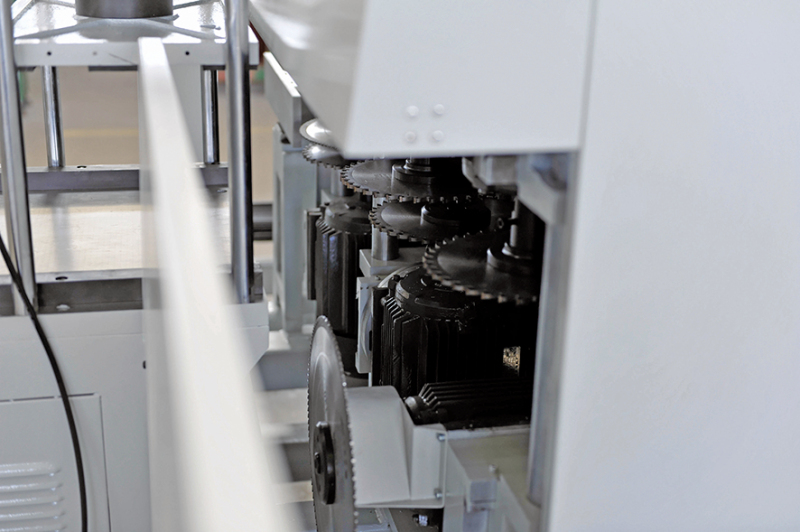

3. Six sets of tools can combine to casual dimension.Two sets of them can be adjusted in the range of 180 degree.
4. The notch size of the profile face can be milled with once feeding.
5. The feeding system adopts variable frequency motor ,so that the feeding speed can be adjusted and profile can be stably cutted.It could achieve high accuracy and nice processed surface.
Main Technical Parameter
| Total power for motor | 4×3.0kW+2×2.2kW |
| Motor’s rotation speed | 2800r/min |
| Motor shaft diameter | φ32mm |
| Number of Milling cutter | 6 pieces |
| φ250milling cutter： 4 pieces φ355milling cutter： 2 pieces | |
| Feeding journey of worktable | 1650 mm |
| Worktable measurement | 510×480mm |
| Cutter adjustment | Horizontal direction 80 mm |
| Longitudinal direction 280 mm | |
| Contour dimension(L×W×H) | 3650×1340×1965mm |
| Weight | About 2000kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.

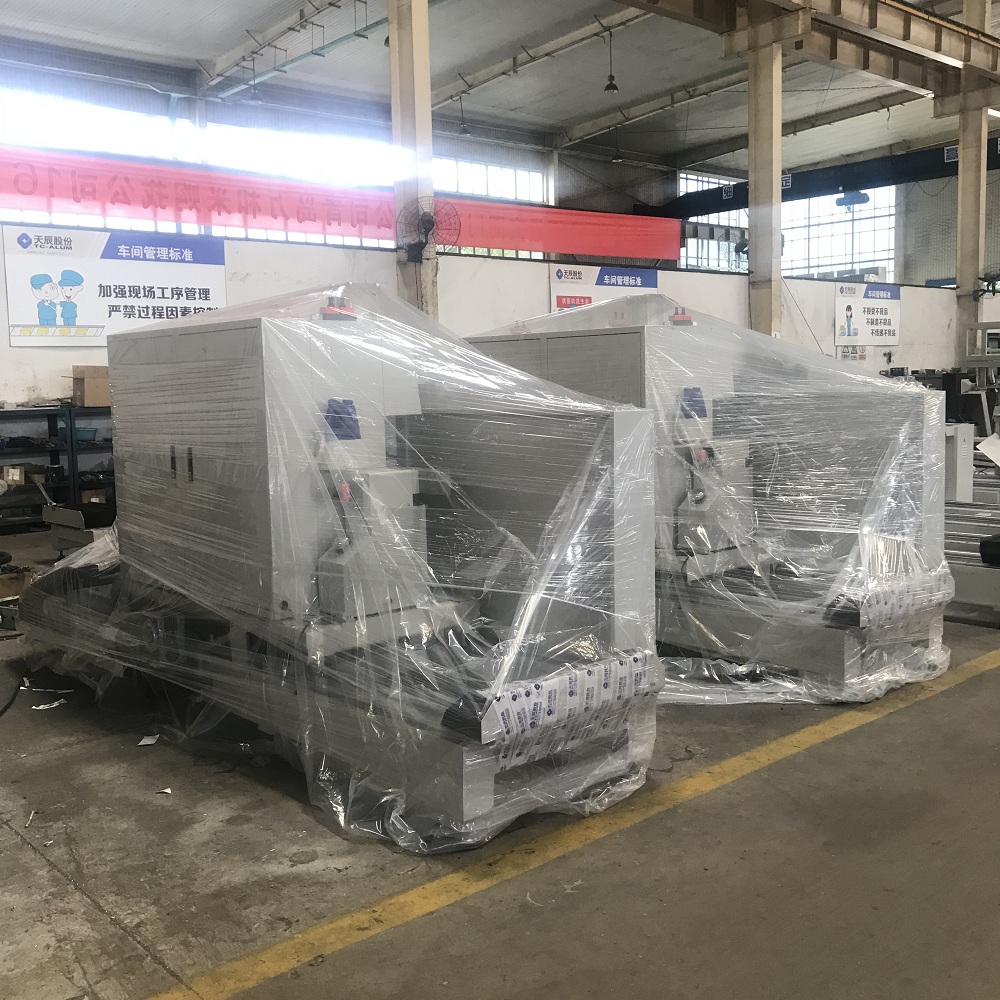

Packaging & Delivery
