Main purpose and applications

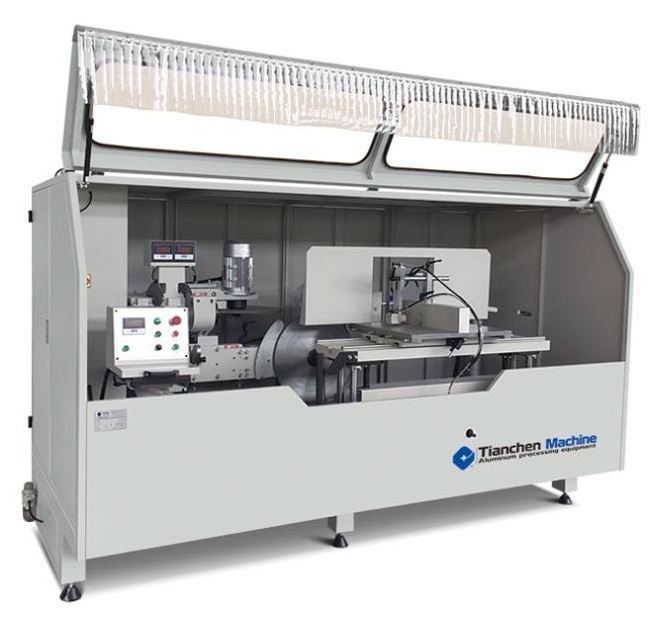

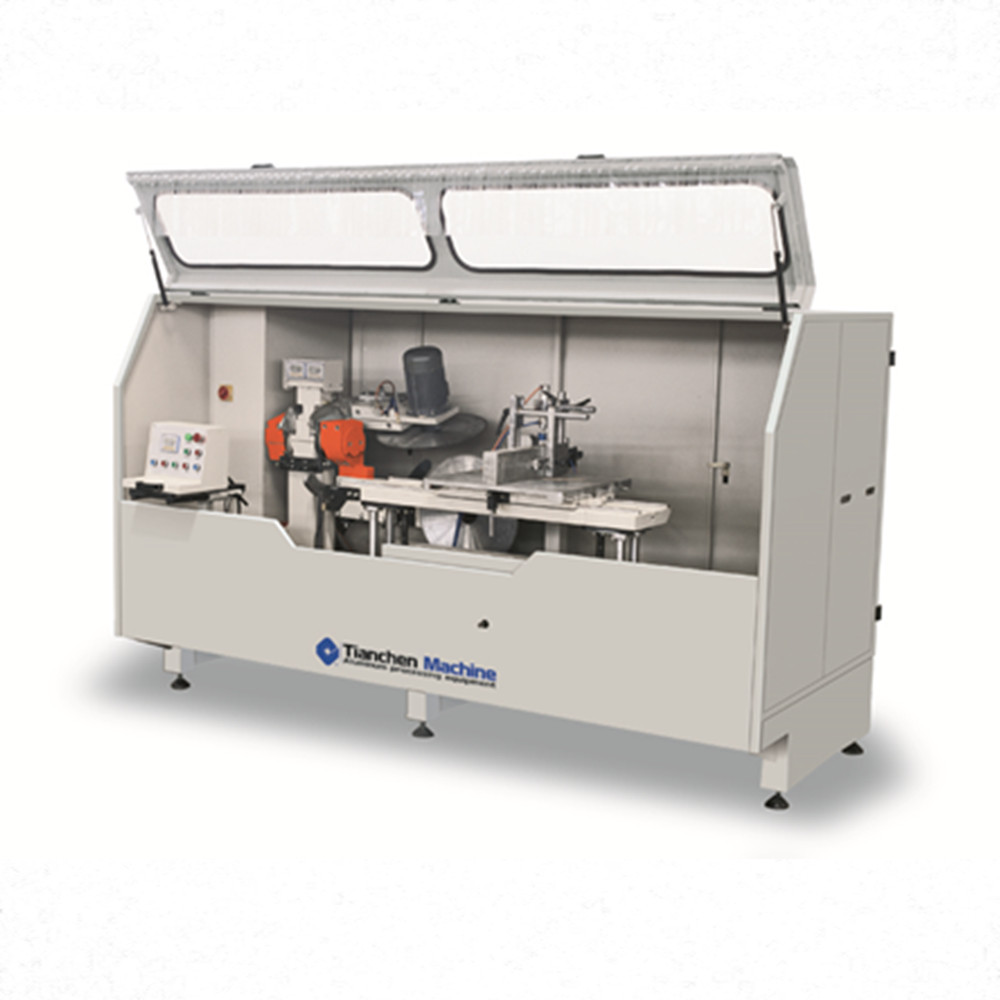

1. It is a new type of machine designed for aluminum curtain-wall and lighting skylight processing industry.
2. It has the Features of easy operation, reliable performance, advanced technique and convenient maintenance etc.
3. The machine is mainly used for processing the aluminum curtain-wall and lighting skylight profiles.
4. The carbide saw blade ensured high processing accuracy and efficiency.

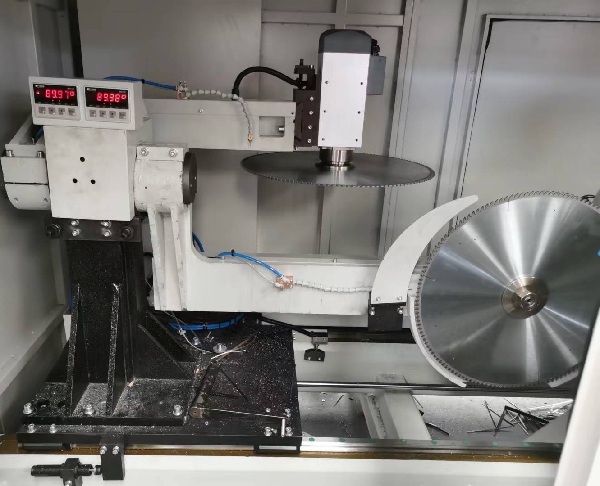

5. The two saw heads can work simultaneously to achieve the processing of a special angle at the profile end surface.

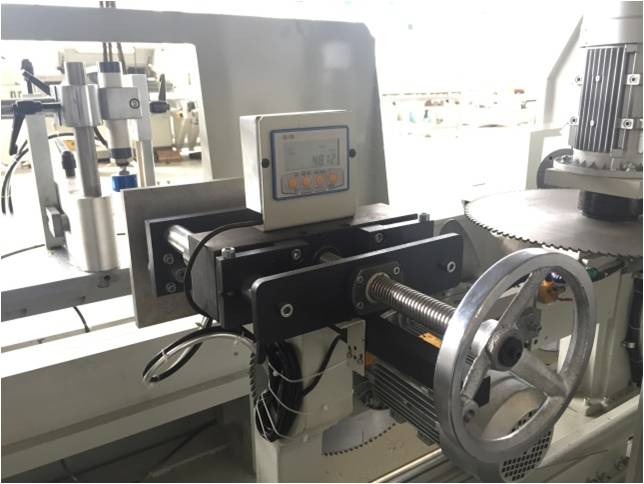

6. The two saw blades can swing freely at +45º～-45º. It adopts the magnetic grid ruler system digital display.
Main specification and technical parameters
| Power supply | Three-phase and four-line 380V 50Hz |
| Cutting motor power | 3.0Kw × 2 |
| Motor rotary speed | 2800r/min |
| Operation air pressure | 0.5Mpa-0.8Mpa |
| Air consumption | 60L/min |
| Saw blade swinging range | 0°~45° |
| Cutting depth(vertical and horizontal saw blade) | 220 ×180mm |
| Cutting width | 300mm |
| Cutter feeding speed | Stepless speed regulation 0-3m/min |
| Saw Blade specification | φ600mm×φ30mm×4.8mm×4.2 Z=144 |
| Saw blade specification | 3500 ×1550 ×1800mm |
| Weight | About 1500kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
FAQ
Q: What is the company's technical strength?
A:As an integration of scientific research, production and sales of high-tech enterprise, Jinan Tianchen Aluminum Machine Corp., Ltd. is the most professional manufacturer providing one-stop solution for processing machines of aluminum windows, doors, curtain walls and industry aluminum profiles, etc. with large sales and wide service net and most complete products types.
Q: Which machine should I choose?
A: Tell us your specific requirements for the machine; we will give you perfect suggestions and solutions.
Q：Which models are the main products?
A： Automatic Lines; Cutting Saw; Milling and Drilling Machine Center; Copy Router Milling Machine; Aluminum Formwork Processing Machines.
Q: How to use the machine, what should I do if problems occurred to the machine?
A: You can refer to the user's manual or instructions delivered along with the machine; if anything unclear, please feel free to contact us. We will support you by email, telephone or instant messengers. If still have difficulties, we offer oversea installation, maintaining and training service.
Q: Which payment method do you accept?
A: We accept T/T, L/C and etc.
Q: How long is the warranty of youraluminium machine?
A: The warranty period is one year.
Q: What is the delivery time?
A: The delivery time differs depend on the machine model and the order quantity. Usually the delivery time shall be 7-25 working days after deposit.
