Features & Advantages

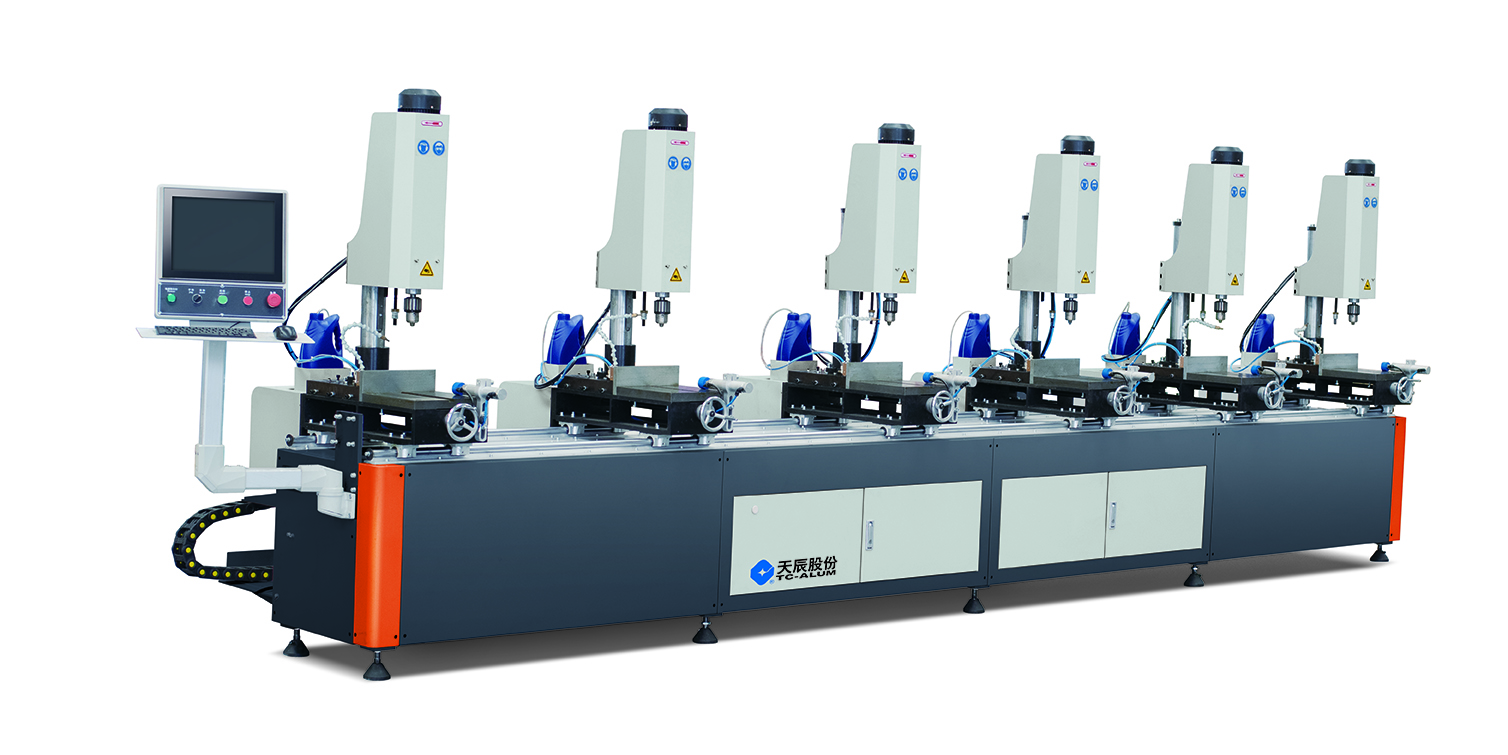

1.It is mainly suitable for drilling processing of aluminum windows and doors and curtain wall profiles, which can realize scanning code processing.
2. With 6 drilling heads, it can drill up to 6 holes at the same time.
3. Using Schneider CNC system, any number (≤6) of the machine heads’ combined drilling work altogether can be realized.
4. It is suitable for profiles with a cross section not exceeding 200×250mm, and the maximum processing length can reach 5000mm.
5. Multi-head drills group unit can be installed to have the simultaneous processing of multiple groups of holes.
6. The feed system adopts gas-liquid damping cylinder, and the feeding is stable.
Technical Parameters
| Power supply | 380V 50HZ |
| Cutting motor power | 6×0.75KW 1400r/min |
| Max drilling hole diameter | 16mm |
| Max distance between two drilling holes | 5000mm |
| Min distance between each group holes | 300mm |
| Power unit quantity | 6 |
| Max moving distance at horizontal direction of drilling head | 120mm |
| Moving distance at vertical direction | 150mm |
| Worktable size(L×W) | 300×300(mm) |
| Drilling head feeding travel | 125mm |
| Feeding pressure | 0.5～0.8MPa |
| Max processing profile section size | 250×250mm |
| Contour dimension(W×H×L) | 5500×1300×1900（mm） |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
Packaging & Delivery
FAQ
Q: What is the company's technical strength?
A:As an integration of scientific research, production and sales of high-tech enterprise, Jinan Tianchen Aluminum Machine Corp., Ltd. is the most professional manufacturer providing one-stop solution for processing machines of aluminum windows, doors, curtain walls and industry aluminum profiles, etc. with large sales and wide service net and most complete products types.
Q: Which machine should I choose?
A: Tell us your specific requirements for the machine; we will give you perfect suggestions and solutions.
Q：Which models are the main products?
A： Automatic Lines; Cutting Saw; Milling and Drilling Machine Center; Copy Router Milling Machine; Aluminum Formwork Processing Machines.
Q: How to use the machine, what should I do if problems occurred to the machine?
A: You can refer to the user's manual or instructions delivered along with the machine; if anything unclear, please feel free to contact us. We will support you by email, telephone or instant messengers. If still have difficulties, we offer oversea installation, maintaining and training service.
Q: Which payment method do you accept?
A: We accept T/T, L/C and etc.
Q: How long is the warranty of youraluminium machine?
A: The warranty period is one year.
Q: What is the delivery time?
A: The delivery time differs depend on the machine model and the order quantity. Usually the delivery time shall be 7-25 working days after deposit.
