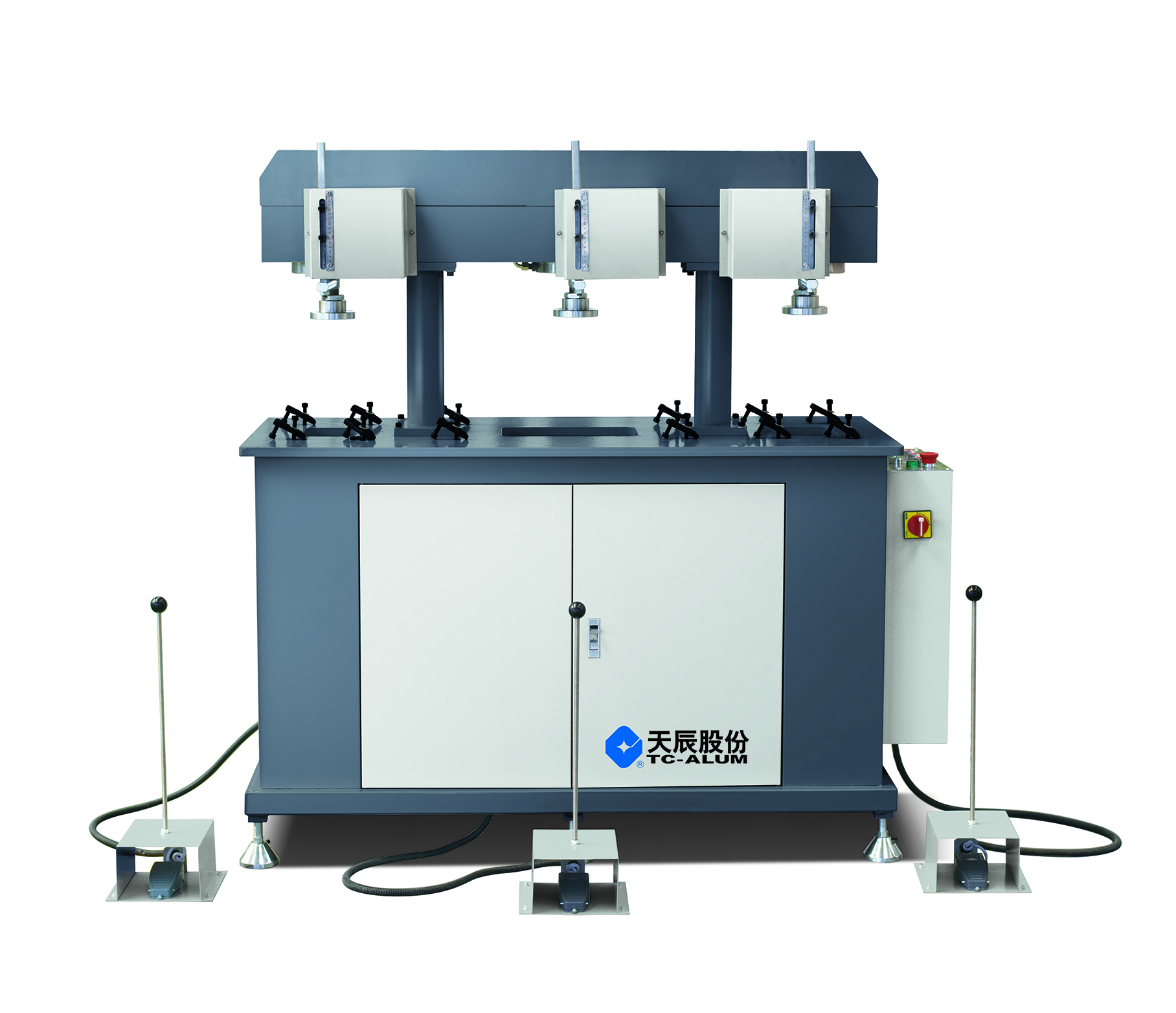

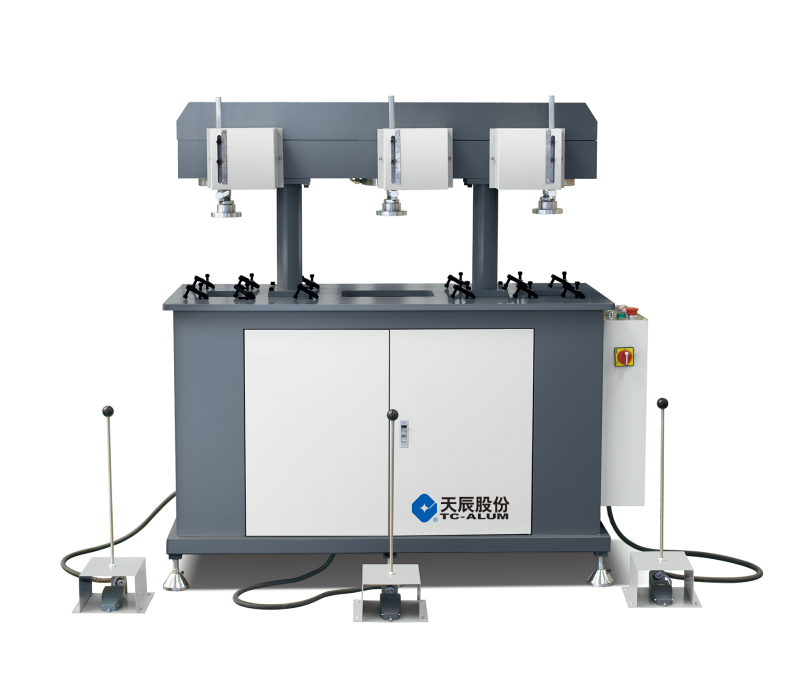

| Aluminum window frame corner crimping machine |
Machine Features：
☆ Suitable for punching processing of various holes and slots of aluminum doors and windows and curtain wall profiles;
☆ It can be used in conjunction with various single molds and combined molds to quickly and easily complete the punching of all holes and slots of aluminum profiles;
☆ Large mold installation space, easy installation and replacement;
☆ There are three sets of independent hydraulic systems, which can satisfy three independent use at the same time, which greatly improves production efficiency;
☆ Increased hydraulic pump and motor power, the maximum punching force can reach 10 tons.
Main Parameters：
| Power Supply | 380V/50Hz |
| Punching Station Nos | 3 |
| Moulds Processing Height | 220mm |
| Max. Punching Travel | 100mm |
| Hydraulic Station Motor Power | 2.2kW×3 |
| Max. Punching Force | 10 Ton |
| Overall Dimension(L×W×H) | 1550×600×1500mm |
| Machine Weight | About 500kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.

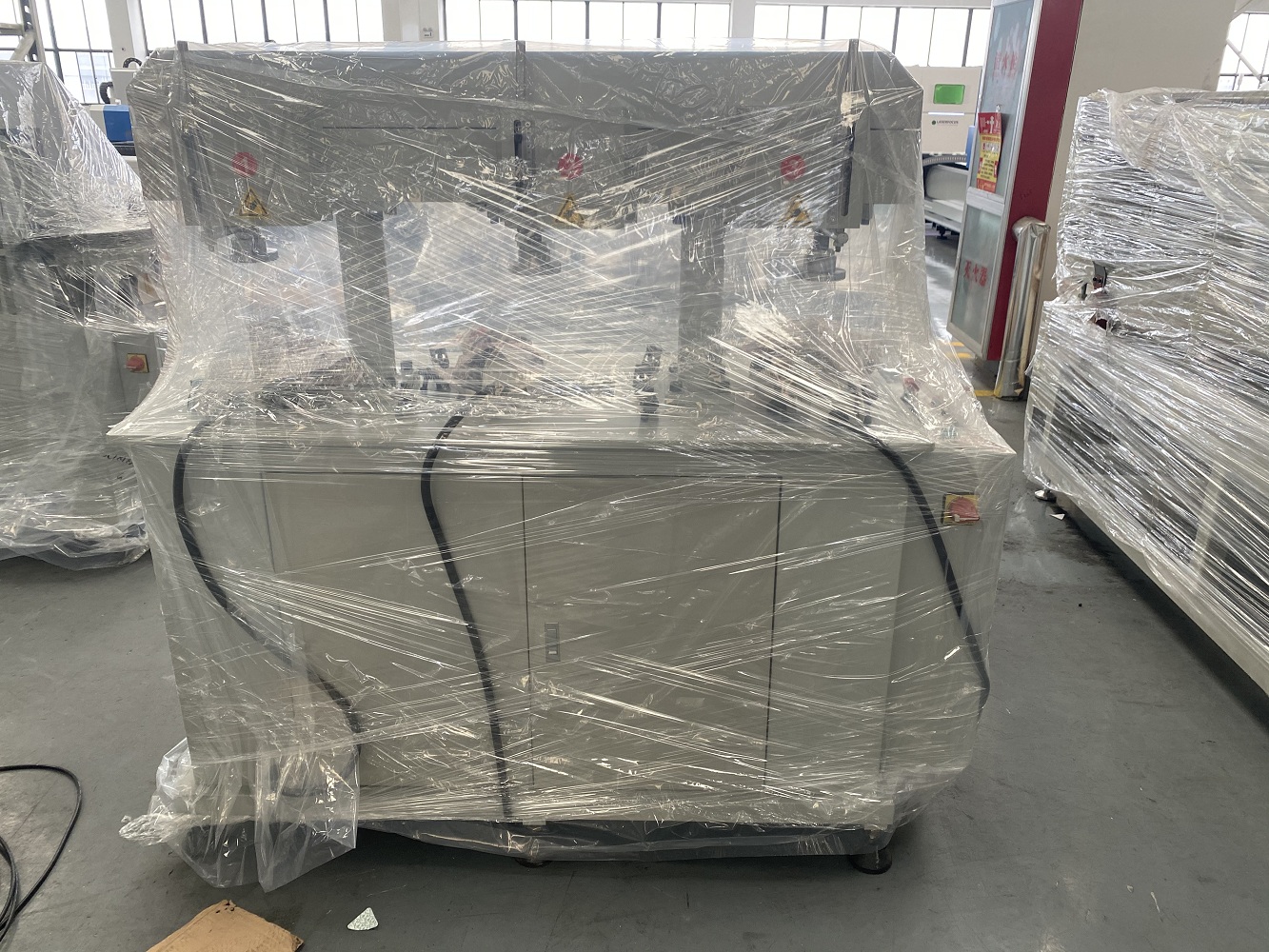

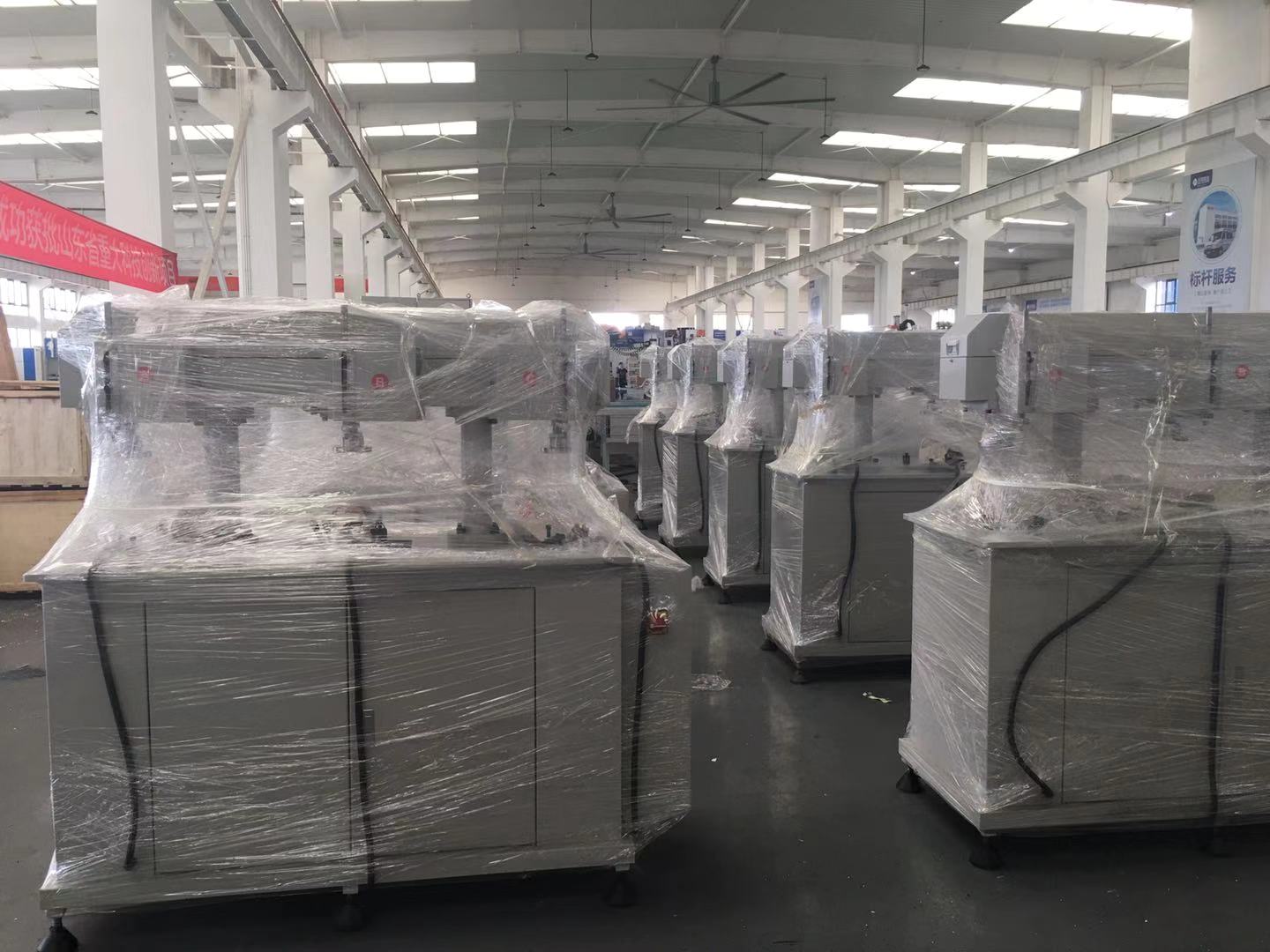

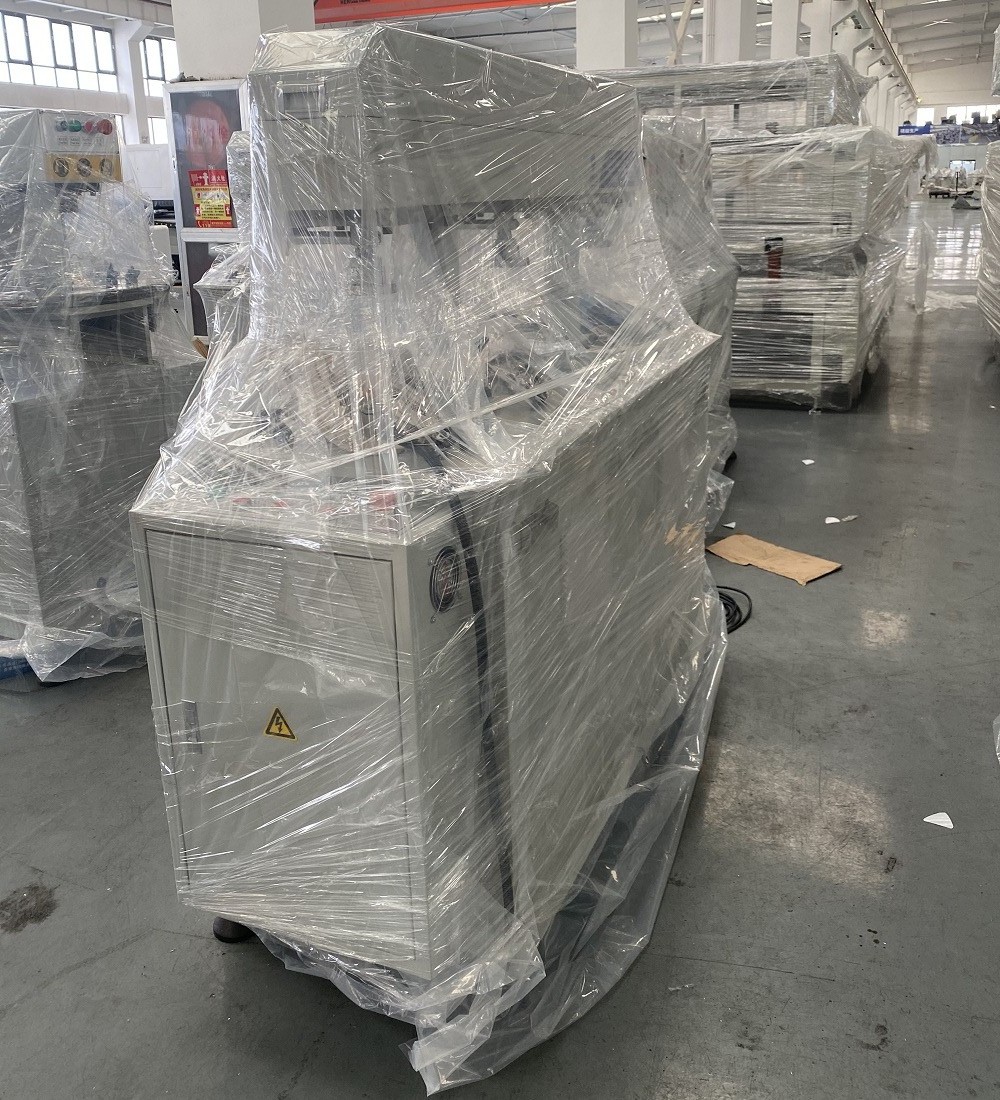

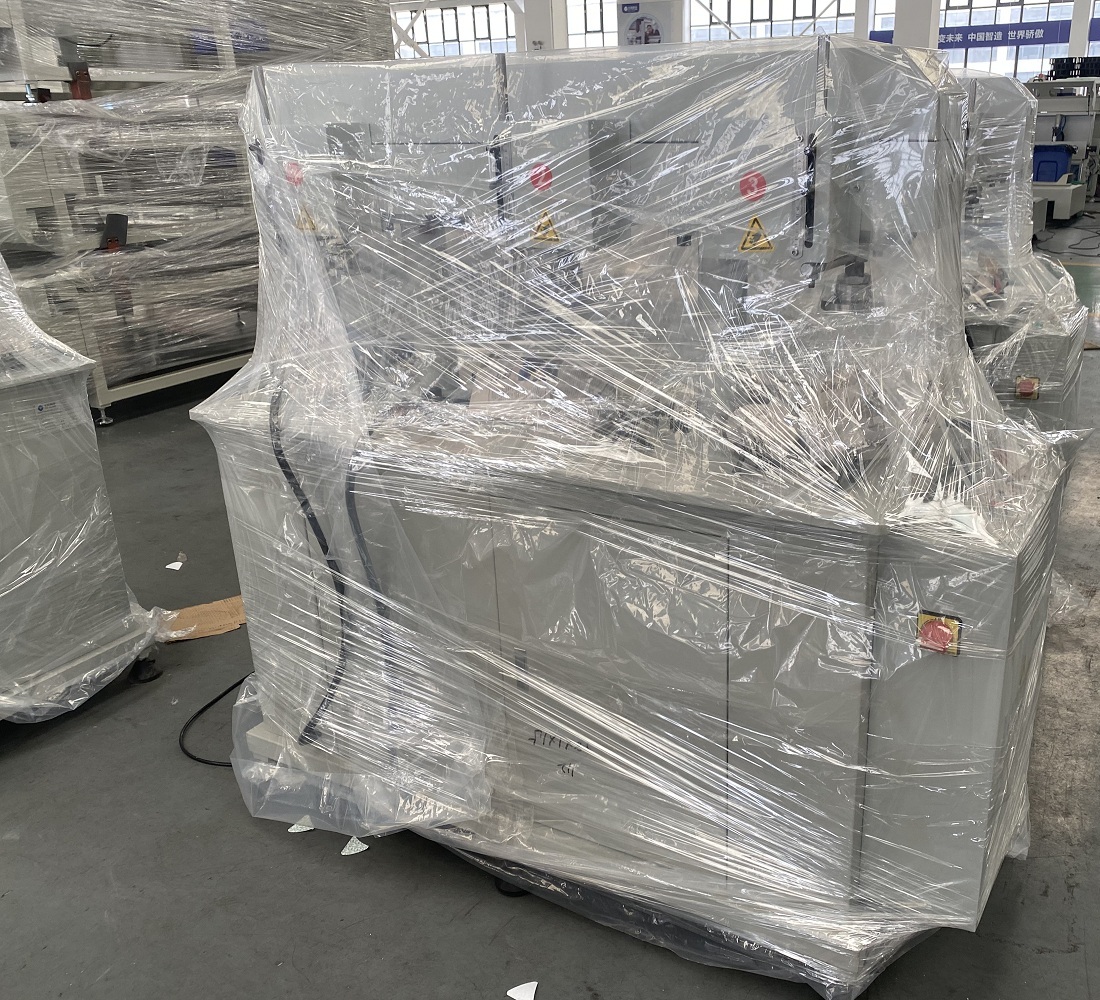

Packaging & Delivery
