Features & Advantages

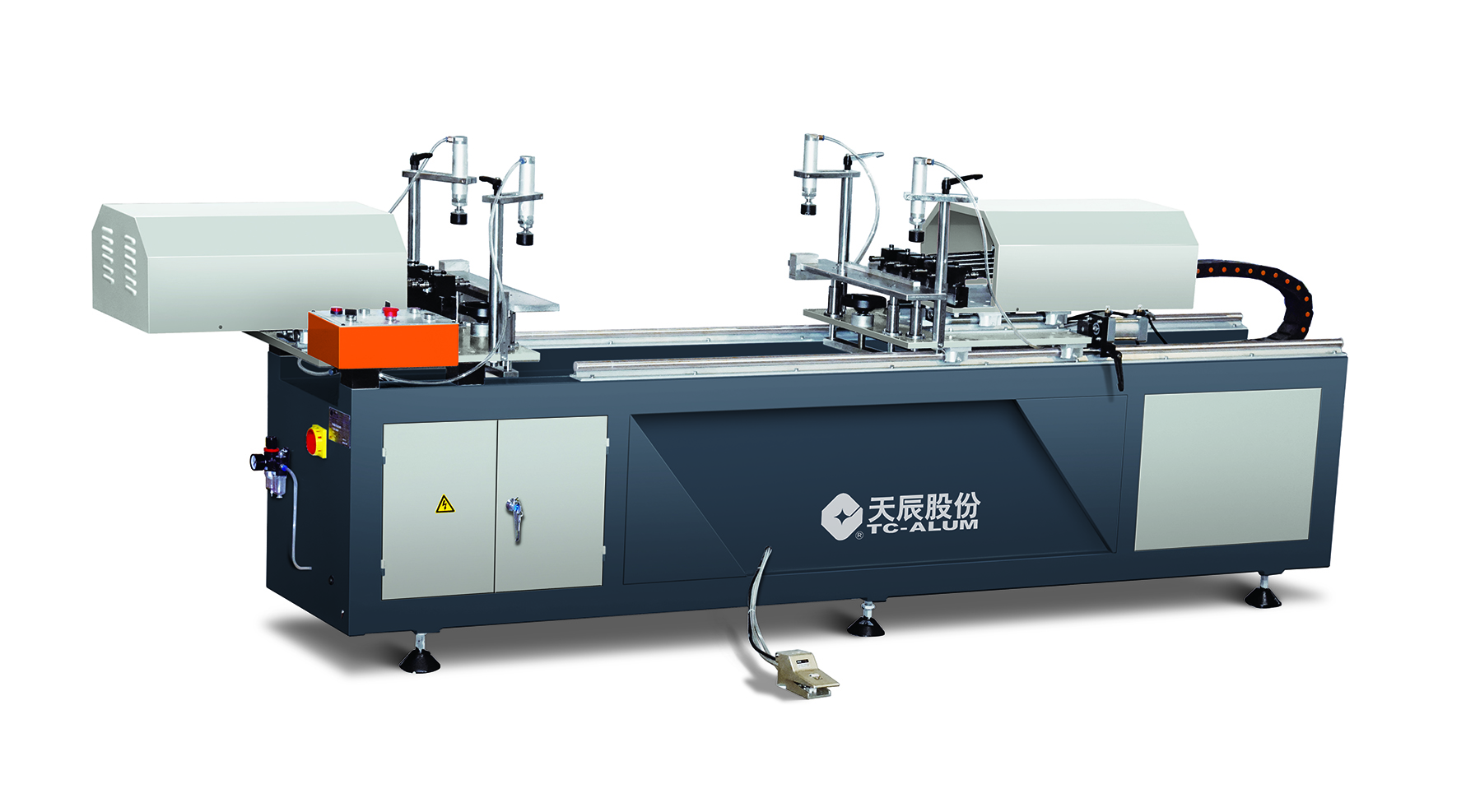

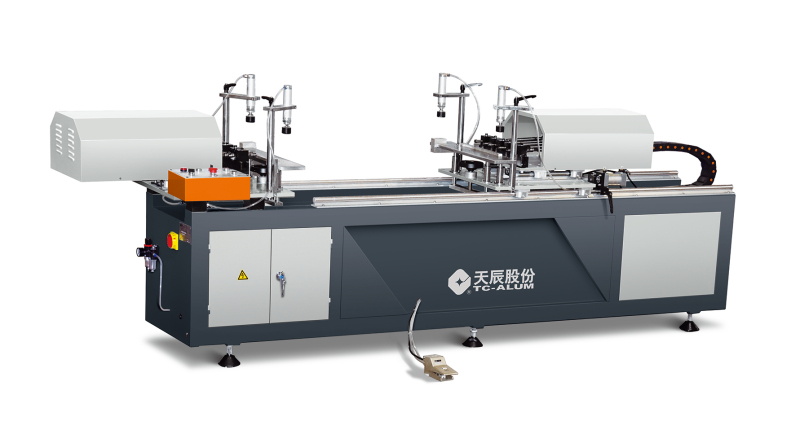

1. It used for drilling installing hole, sliding support hole and four connecting rod hole of aluminum window and door profile (outward window and tilt Windows, ect).
2. It can process on both sides of total 10 holes at one time. Machining efficiency is very high.

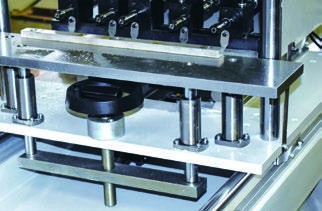

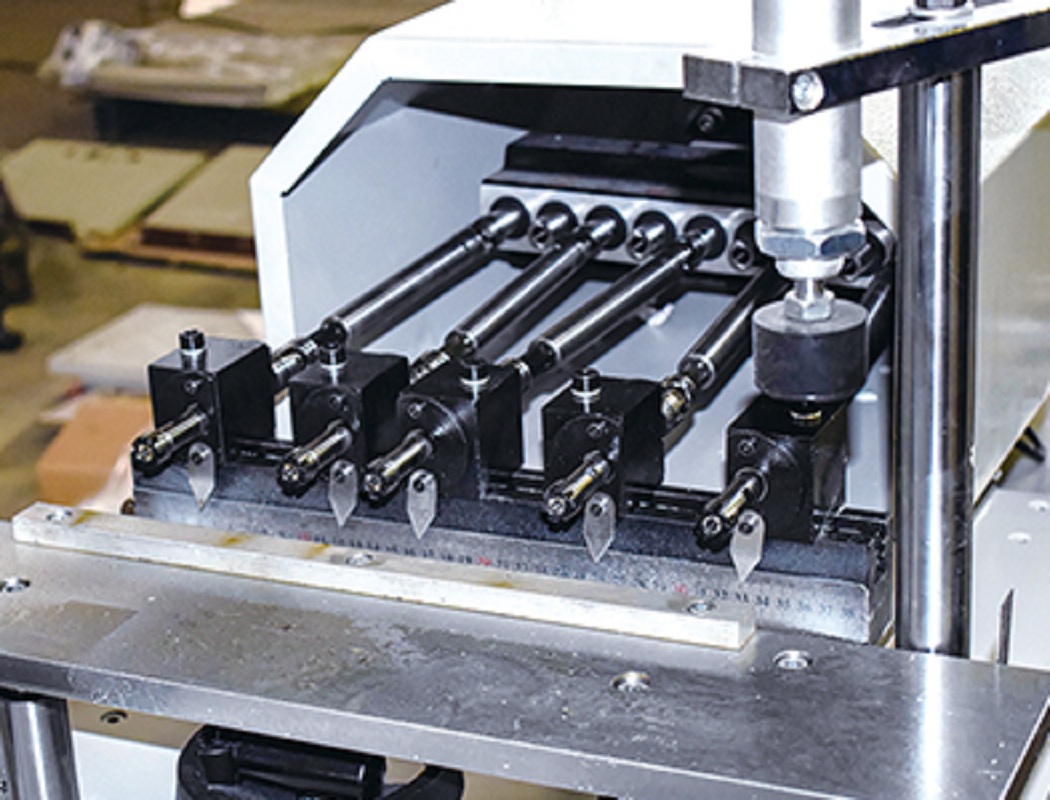

3. It used of high precision multi axis drilling package from Taiwan to ensure machining accuracy and service life.
4. Foot switches control action, easy to operate.
Technical Parameters
| Process width | 300~2000mm |
| Drilling diameter | φ1~φ7mm |
| Min hole distance | 22mm |
| Max hole diatance | 380mm |
| Rated power | 3.0kW |
| Spindle speed | 1400rpm |
| Dimension（L×W×H） | 3100x1200x960(mm) |
| Weight | About750kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
Packaging & Delivery
FAQ
Q: What is the company's technical strength?
A:As an integration of scientific research, production and sales of high-tech enterprise, Jinan Tianchen Aluminum Machine Corp., Ltd. is the most professional manufacturer providing one-stop solution for processing machines of aluminum windows, doors, curtain walls and industry aluminum profiles, etc. with large sales and wide service net and most complete products types.
Q: Which machine should I choose?
A: Tell us your specific requirements for the machine; we will give you perfect suggestions and solutions.
Q：Which models are the main products?
A： Automatic Lines; Cutting Saw; Milling and Drilling Machine Center; Copy Router Milling Machine; Aluminum Formwork Processing Machines.
Q: How to use the machine, what should I do if problems occurred to the machine?
A: You can refer to the user's manual or instructions delivered along with the machine; if anything unclear, please feel free to contact us. We will support you by email, telephone or instant messengers. If still have difficulties, we offer oversea installation, maintaining and training service.
Q: Which payment method do you accept?
A: We accept T/T, L/C and etc.
Q: How long is the warranty of youraluminium machine?
A: The warranty period is one year.
Q: What is the delivery time?
A: The delivery time differs depend on the machine model and the order quantity. Usually the delivery time shall be 7-25 working days after deposit.
