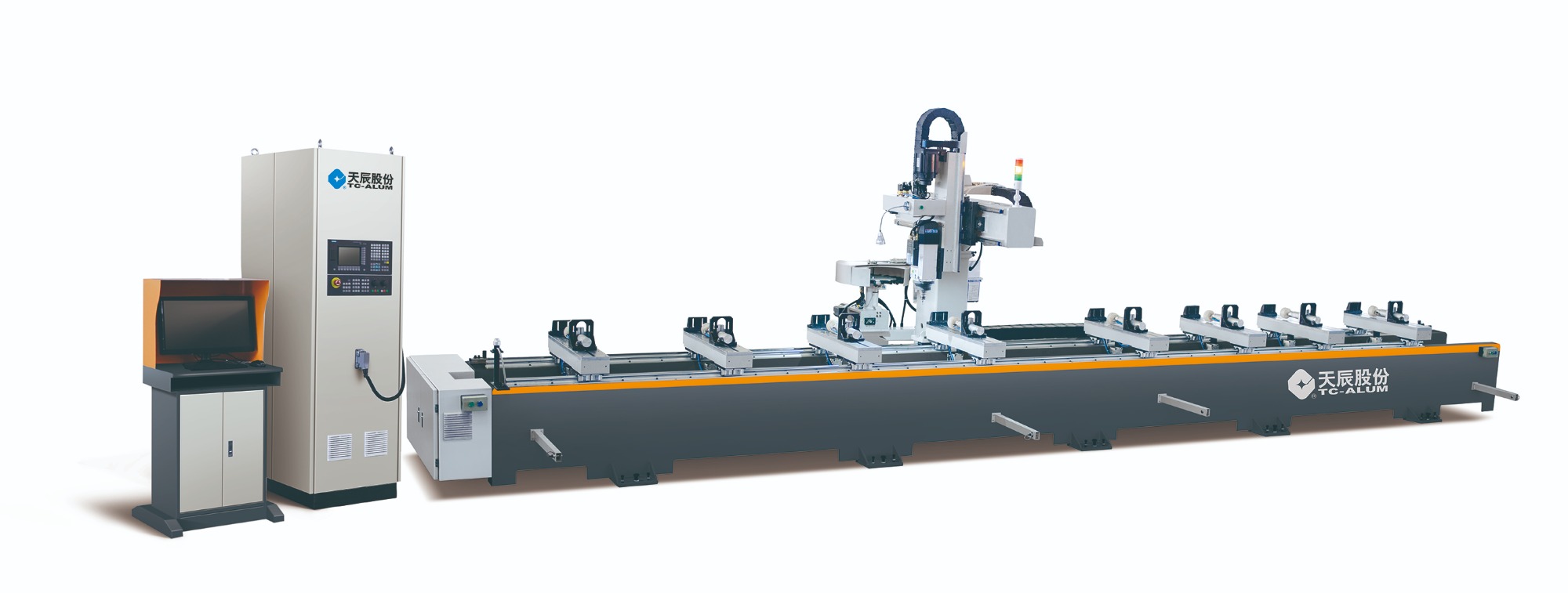

Features & Advantages
★ Applicable for milling and cutting processing for various irregular holes of aluminum window and door curtain wall or industrial aluminum profile, and non-ferrous metal profile.
★ Able to realize milling and cutting for the upper surface multi-type of holes and slots
★ Adopting SIEMENS high quality CNC system and HSD high speed electrical spindle, with reliable performance.
★ Able to realize the three-axis simultaneous motion and two-axis separately interpolation.
★ Adopting cooling spraying system for cooling the tools, for improving the cutting tool service life and roughness of the work parts.
★ The follow-up tool magazine supply 12 positions, able to change tools as the program requested.
★ Double worktable can process two pieces or two types of profile, interactive loading without interfere each other.
★ The machine tool body adopts fine quality steel plate welding structure, and went through aging treatment.
★ All movable parts adopt high precision linear guide rail pair.
★ A 9 meter extra length model can be customized.
Technical Parameters
| X-axis Range | 7000mm |
| Y-axis Range | 800mm |
| Z-axis Range | 320mm |
| X-axis Speed | 0～60m/min |
| Y-axis Speed | 0～24m/min |
| Z-axis Speed | 0～16m/min |
| Main shaft Rev./power | 0～24000rpm/7.5kw |
| Cutter Magazine | ISO30 12 cutter positions |
| Cutter Max length | 135mm |
| Total Power | 12KW |
| Type of Clamping | Pneumatic clamps:8 sets; manual-locate and pneumatic locked |
| Work Area(W x H x L) | Single work table: 500x250x7000mm Double work table: sum length of two pieces≤7000mm |
| Contour Dimension (W x H x L) | 11300x2350x2550mm |
| Weight | About 4500kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
