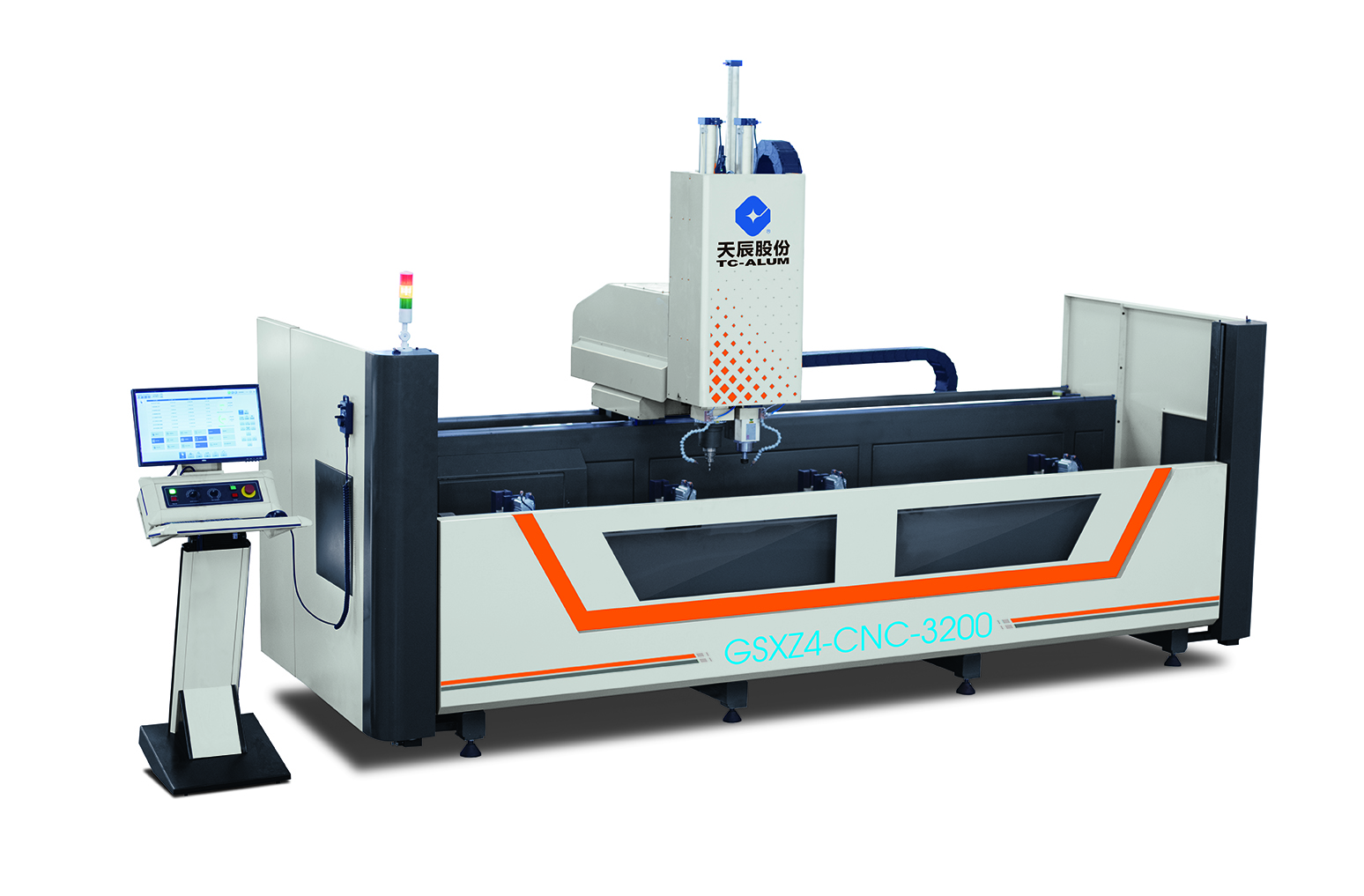

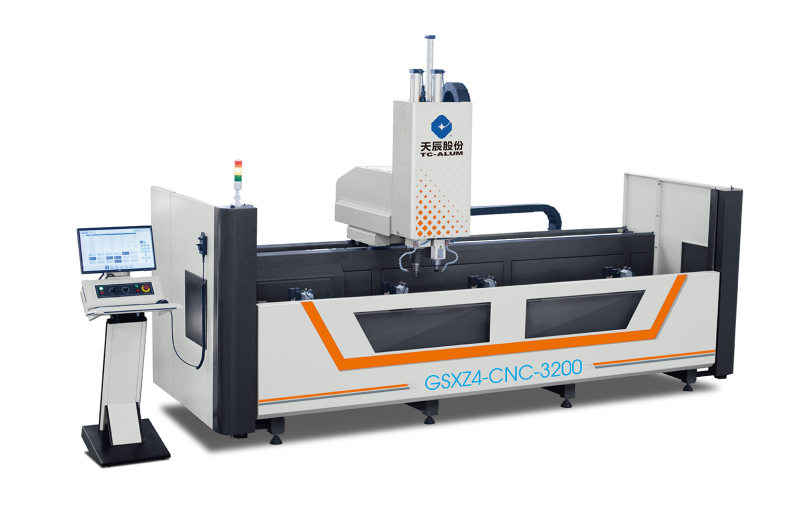

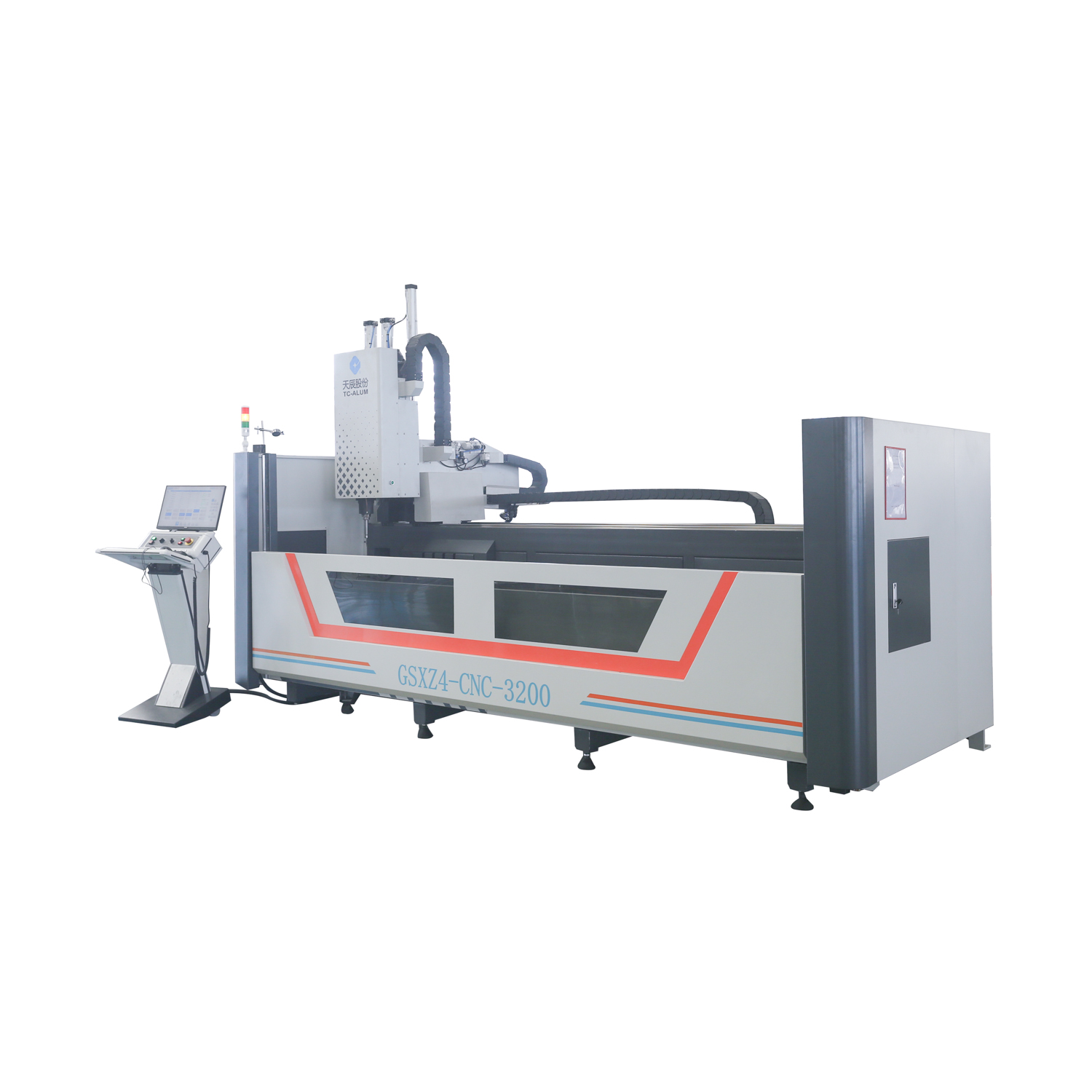

Equipment Features
² It is used for all kinds of CNC drilling and milling profiles and plates in aluminum, copper, PVC, and plates;
² With high precision linear guide, ball screw, gear, rack, and inlet servo system, which ensure it runs smoothly, positions and machines accuracy.
² The rotary table can convert between the three positions in -90 degrees, 0 degrees and +90 degrees, which realizes that a clamping can finish three surface milling.

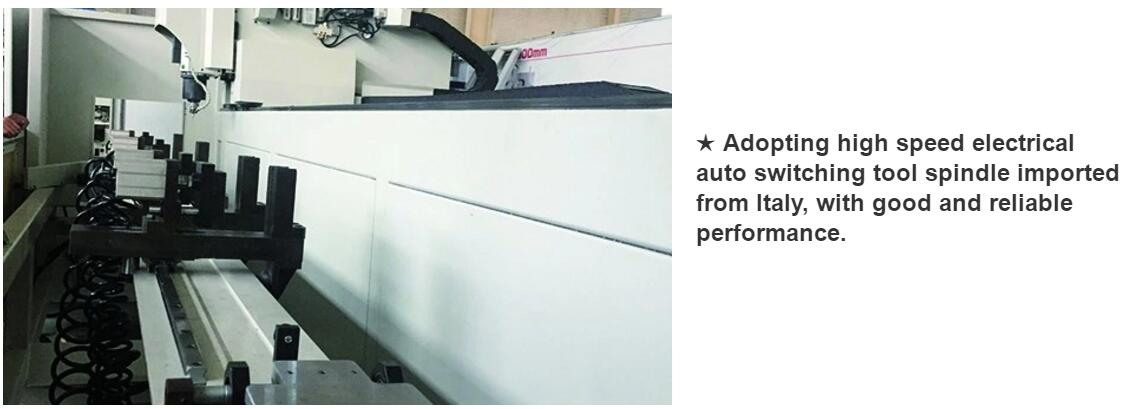

² Adopt dual-spindle configuration, the No. 1 spindle is an 8.0kW Italian imported high-speed automatic tool-changing electric spindle, with stable and reliable performance; the No. 2 spindle is a drilling electric spindle, which can be installed with a stepped drill bit to achieve rapid drilling, saving tool change time and efficiency higher

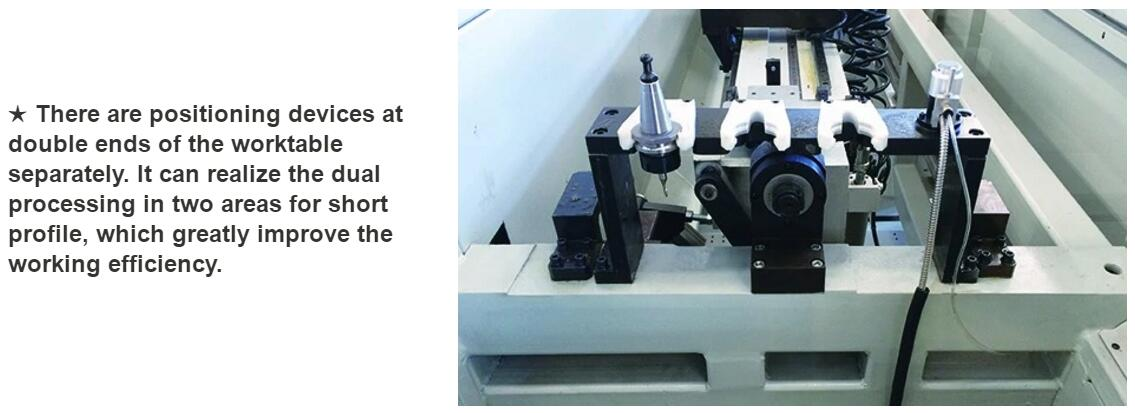

² Each set of fixtures are directly driven by servo motors, with the functions of fast automatic displacement and fast avoidance of positions
² Four-position in-line tool magazine, which can realize automatic tool change of HSD motorized spindle
² The CNC system can support online communication with MES to realize automatic loading and unloading of robots
² Install special auxiliary programming software, 3D graphical programming and prefabricated multiple primitive blocks, easy and intuitive programming
² Adopt semi-enclosed shield and bottom receiving tray, which has high safety, and effectively avoids the pollution of aluminum chips to the working environment, creating a good working environment The intelligent CNC system and the simple, intuitive interface makes the operation more convenient.
² The intelligent CNC system and the simple, intuitive interface makes the operation more convenient.
Main specification and technical parameter
² X-axis range：3200mm
² Y-axis range：450mm
² Z-axis range：350mm
² X-axis moving speed：0~106m/min
² Y-axis moving speed：0~30m/min
² Z-axis moving speed：0~30m/min
² 1#Spindle power：8.0kw
² 2#Spindle power：1.5kw
² Position accuracy：±0.1㎜
² Processing accuracy：±0.1㎜
² Surface roughness: Ra12.5um
² Man processing rang: 160×160×3200mm
² Spindle taper: ISO30
² Tool magazine capacity：4
² Cooling system：atomization cooling
² Quantity of clamp：4
² Power supply：380V/50Hz
² Operation air pressure：0.5-0.8Mpa
² Area：4500mm X 2300mm
² Weight：2500kg
Main configurations
² CNC system：PA Germany
² Ball Screw: ROUST/HIWIN/ABBA/PMI/HL
² Spindle: Italy HSD

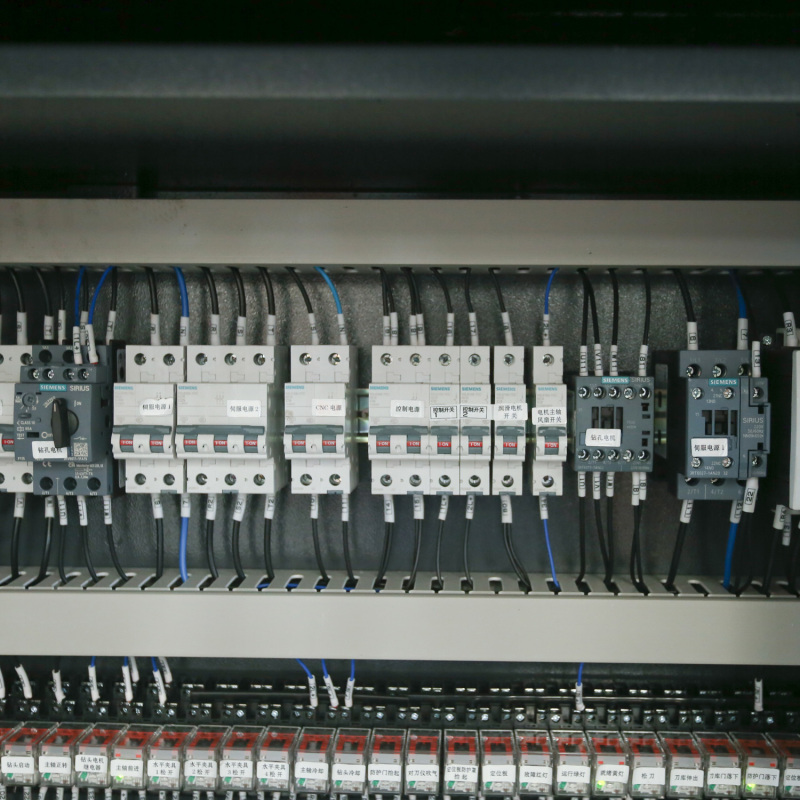

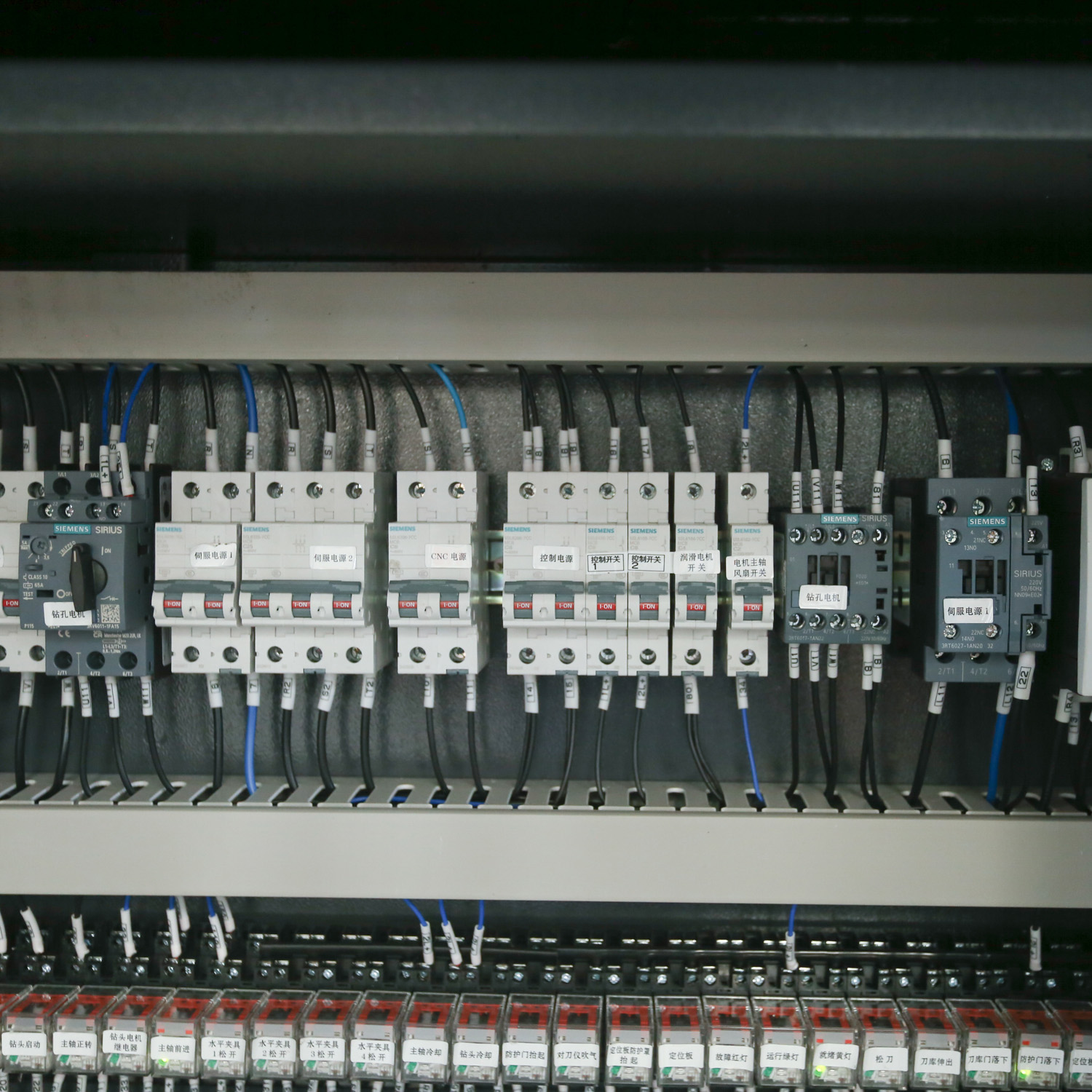

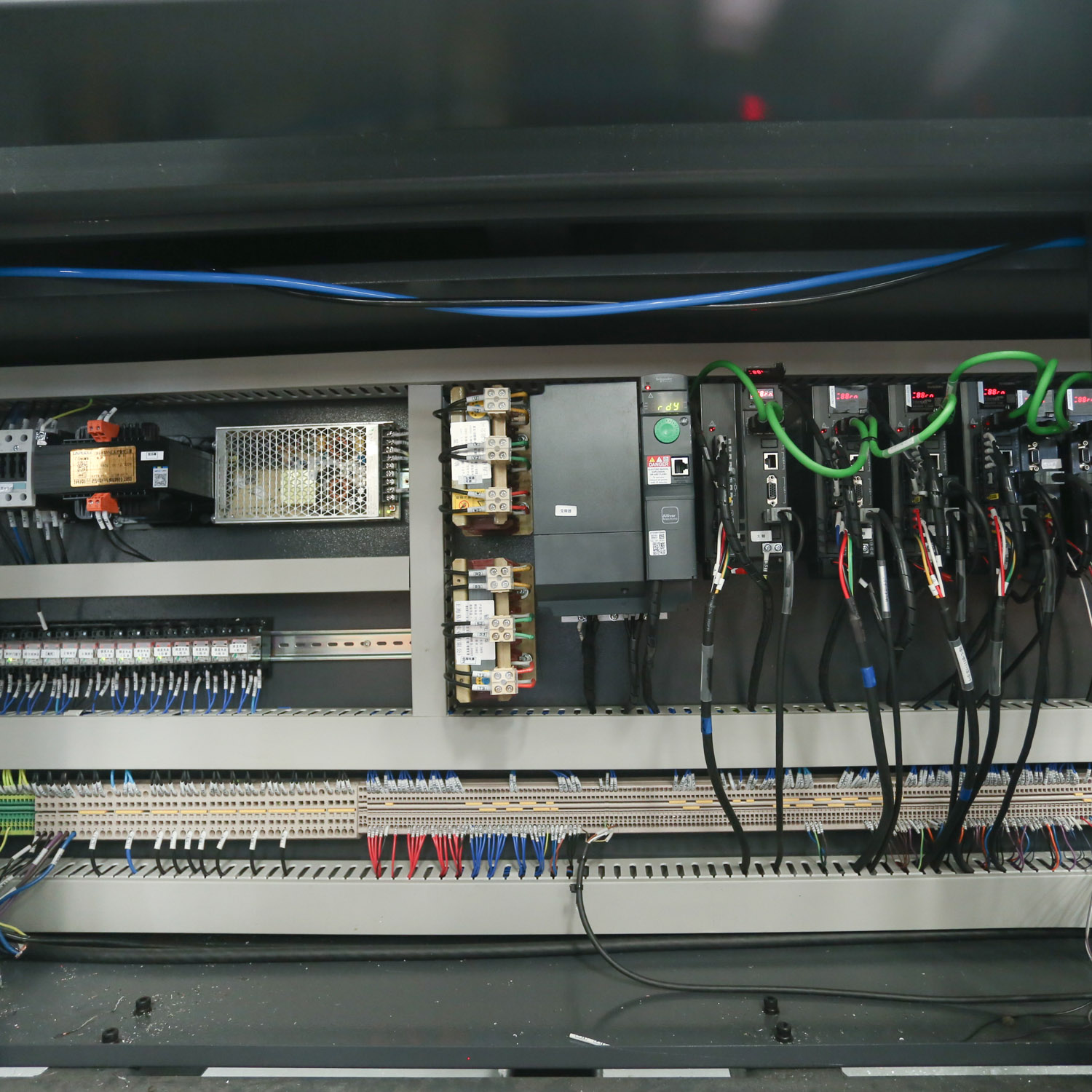

² Low voltage apparatus：Siemens, Germany
² Pneumatic component：SMC/EMC/AirTAC
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
