Features & Advantages
★ Applicable for CNC milling and drilling processing for multiple parts of aluminum window and door curtain wall or industrial aluminum profile, copper, PVC profile and etc.
★ Adopt high precision guide rail pair, ball screw, gear rack and imported high quality servo system, make sure the stable working, with better positioning and processing accuracy.

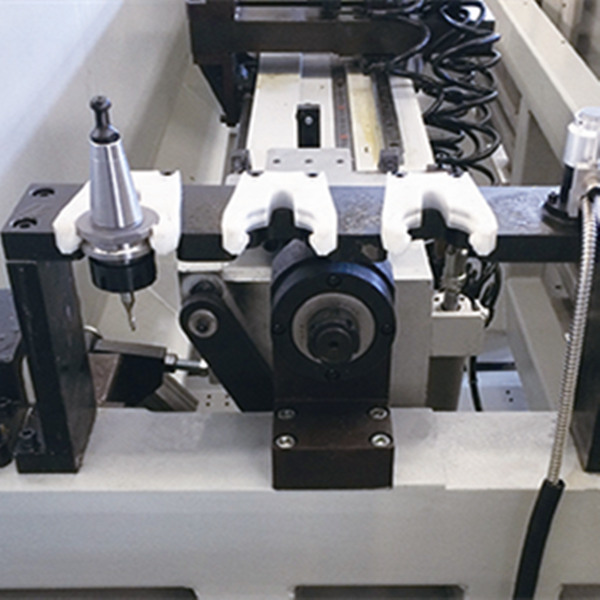

★ Adopting high speed electrical auto switching tool spindle, with good and reliable performance.
★ There are positioning devices at double ends of the worktable separately. It can realize the dual processing in two areas for short profile, which greatly improve the working efficiency.
★ Adopting semi-closed protective shield and receiver at the bottom, with better safety. And effectively avoid the chippings pollution to the environment; help building a good working environment.
★ It is convenient to operate with intelligent CNC system and brief intuitive interface
★ The rotary work table is able to change among the -90°,0°, and 90°, realized the milling and drilling processing at three surfaces for one time clamping.
Technical Parameters
| X-axis Range | 3500mm |
| Y-axis Range | 450mm |
| Z-axis Range | 350mm |
| X-axis Moving Speed | 0～60m/min |
| Y-axis Moving Speed | 0～30m/min |
| Z-axis Moving Speed | 0～30m/min |
| Spindle power | 7.5kw/9kw |
| Spindle Max Rev. | 24000r/min |
| Spindle Taper | ISO30 |
| Max Processing Range | 160x160x3200mm |
| Tool Magazine Capacity | 3pcs |
| Quantity of Clamp | 4 |
| Area | 4500mmx2300mm |
| Weight | About 2500kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
