Features & Advantages

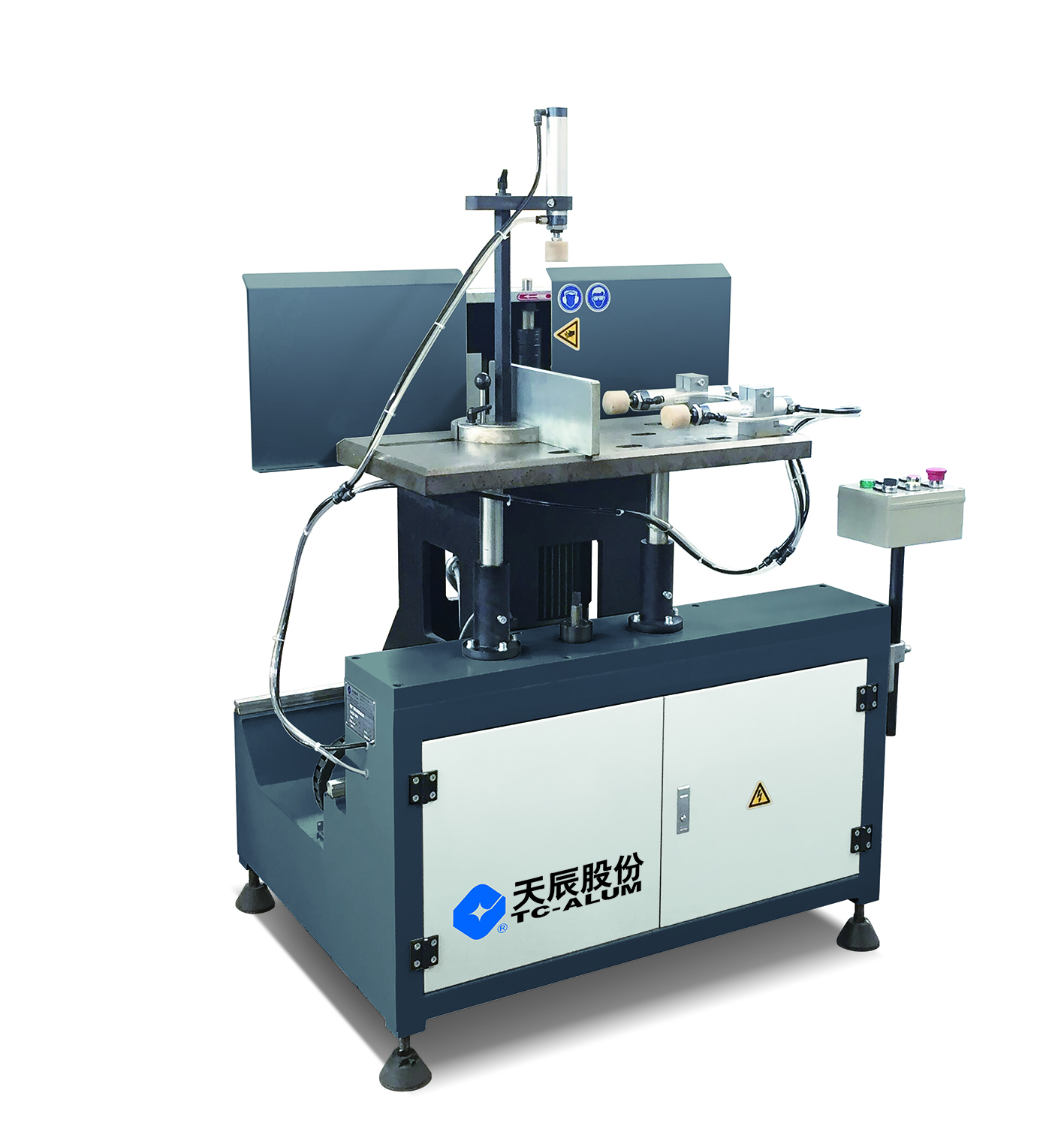

1. Used for processing large section milling of aluminum doors and windows.
2. 35°~90°arbitrary angle milling.
3. Worktable can be adjusted up and down, easy to adjust cutter.
4. Cutting tool installed on the high precision spindle; the Running precision of the motors does not affect the working accuracy of the cutter.
5. The cutter feed adopts linear motion pair, and the working performance is sable.
6. Feeding system is driven by air-hydro damping cylinder. Cutting smoothly and reliable, cutting precision and surface quality is perfect.
| Cutting motor power/Motor rotary speed | 5.5KW/2920rpm |
| Main spindle diameter | ф32mm |
| Max milling cutter diameter | ф350 mm |
| Worktable dimension | 500mm×350 mm |
| Milling cutter height | 190mm |
| Worktable lifting stroke | 0-80mm |
| Rotation angle of positioning plate | 35°~90° |
| Max dimension of tenon | 190×140×200 mm |
| Contour dimension | 1280×1280×1220 mm |
| Weight | About 250Kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
