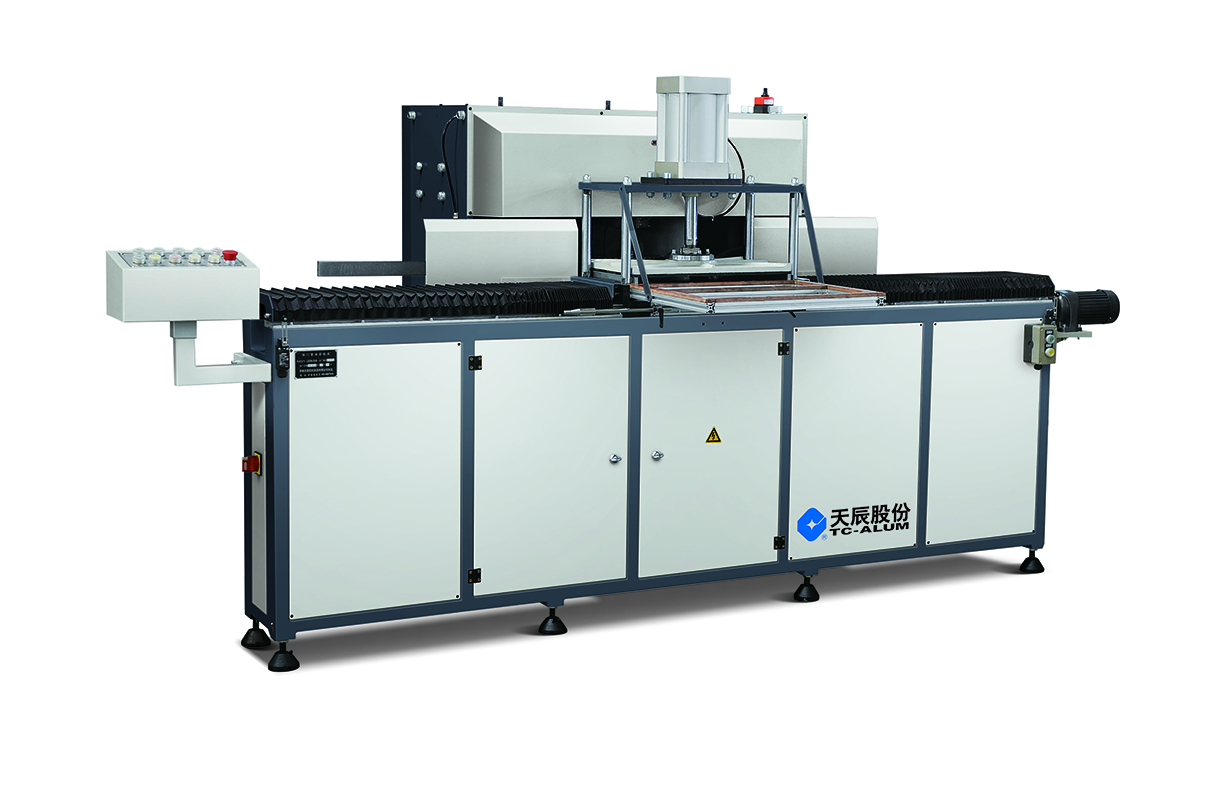

Equipment Features
1. Used for processing aluminum & pvc profile end and suitable for various profiles.
2. Super precision main shaft insured accurate and steady processing
3. Milling the aluminum mullion profile to connect the mullion profile and frame profile.
4. Can mill many profile in one time with high productivity.
5. Milling cutter can be adjusted up/down and left/right to meet different type of profile
6. Four horizontal milling cutter and one vertical milling cutter combination to mill strengthened type of mullion profile.
7. Milling cutter are adjustable for milling different profile, without special made cutter to save the production time, reduce the production cost.
8. Large diameter of milling cutter, high speed milling, good quality milling profile surface.
9. Adopted the electrical motor protect device to improve the safety.
10. Feeding system adopts frequency conversion motor + ball screw.
Main specification and technical parameter
| Power supply | 380V 50Hz |
| Total power | 4X2.2KW |
| Motor rev | 2800r/min |
| Air pressure | 0.5－0.8MPa |
| Diameter of main shaft | φ32mm |
| Diameter of milling cutter | φ250mm |
| Diameter of blade | φ355mm |
| Workable journey | 0－1560 mm |
| Worktable dimension | 530×320 mm |
| Max processing high size | 0－68 mm |
| Max processing tenoning size | 0－45 mm |
| Contour dimension | 3240×1510×1655 mm |
| Weight | About 1200kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
