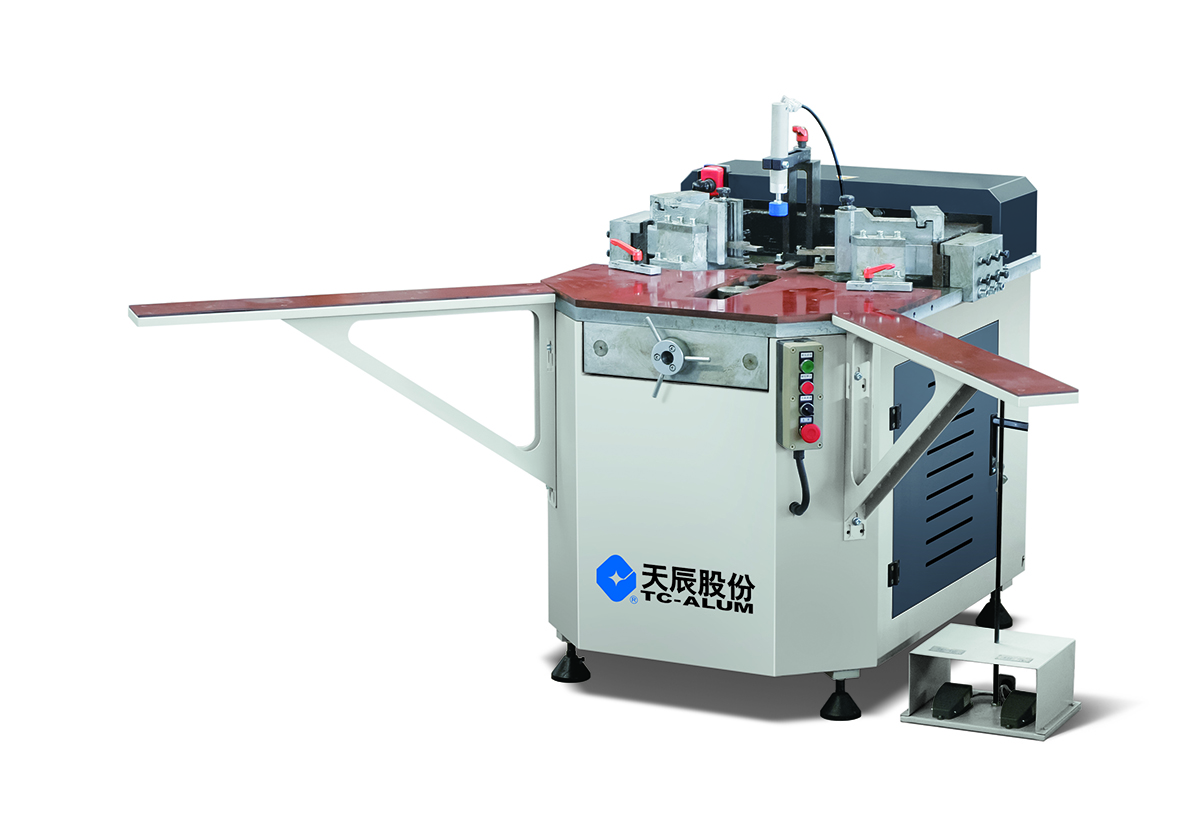

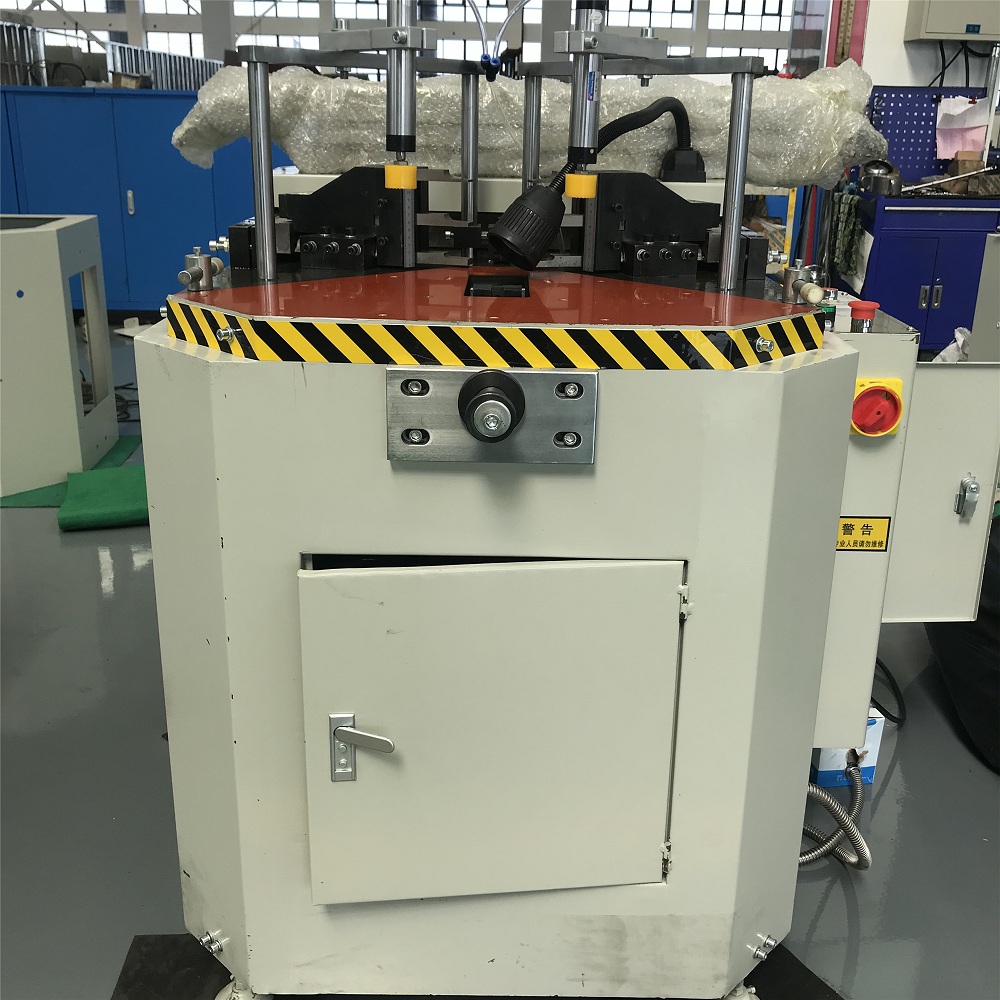

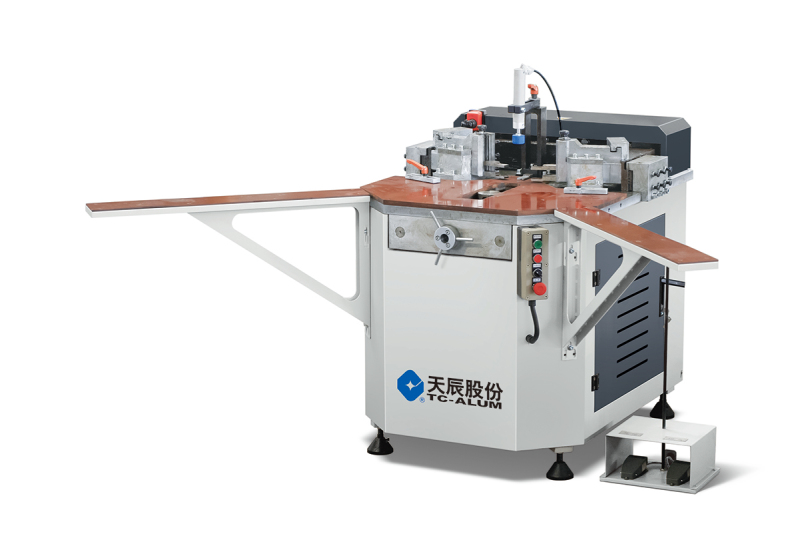

Aluminum window frame corner crimping machine
Equipment Features
1. It is suitable for the riveting connection of aluminum doors and windows in corner structure at 90°;The corner crimping power is supplied by the hydraulic,
system, with large punching and riveting force, processing stably.
2. The left and right set angle cutter adopts the rigid synchronization device of the high-strength mechanical slide plate, and the set angle is of good quality;
The crimping cutters can be adjusted up and down within a large scope, which is suitable for the high profile.
3. The internal positioning can be automatically raised and lowered, which is more convenient for placing and taking profiles and operation;
4. The hydraulic station is equipped with a high-power motor and a large-flow oil pump, which has fast assembly angle speed and large punching force;
5. It can be configured with double-edge crimping cutters, which strengthens the corner crimping.

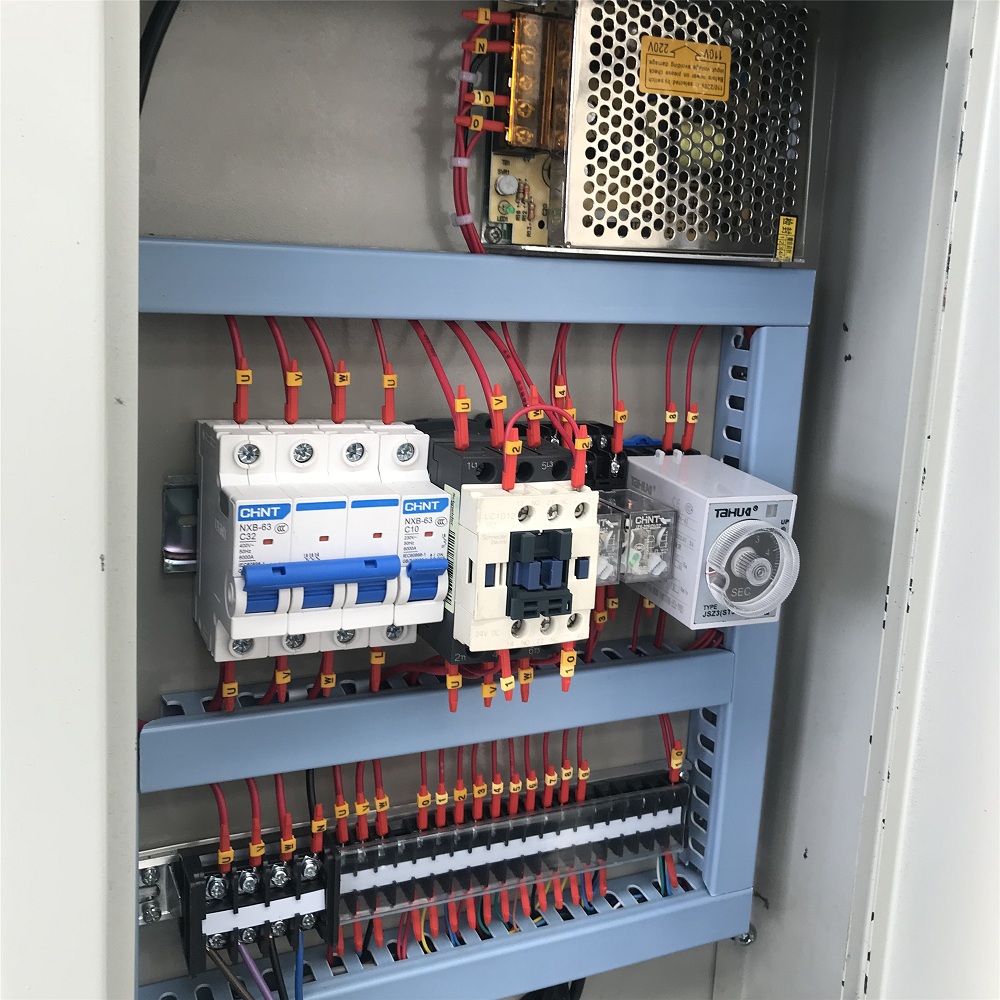

6. Using Siemens PLC control, stable and reliable, and convenient operation.
Main specification and technical parameter
| Power supply | 380V/50Hz |
| Motor power | 4.0KW |
| Motor rotating speed | 1450r/min |
| Rated oil pump pressure | 18Mpa |
| Total combining pressure | 0.5-0.8Mpa |
| Air consumption | 2L/min |
| Oil tank capacity | 20L |
| General pressure of corner crimping | 80KN |
| Profile processing height | 140mm |
| Contour dimension | 2000×1900×1300mm |
| Weight | About 750kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
