Features & Advantages

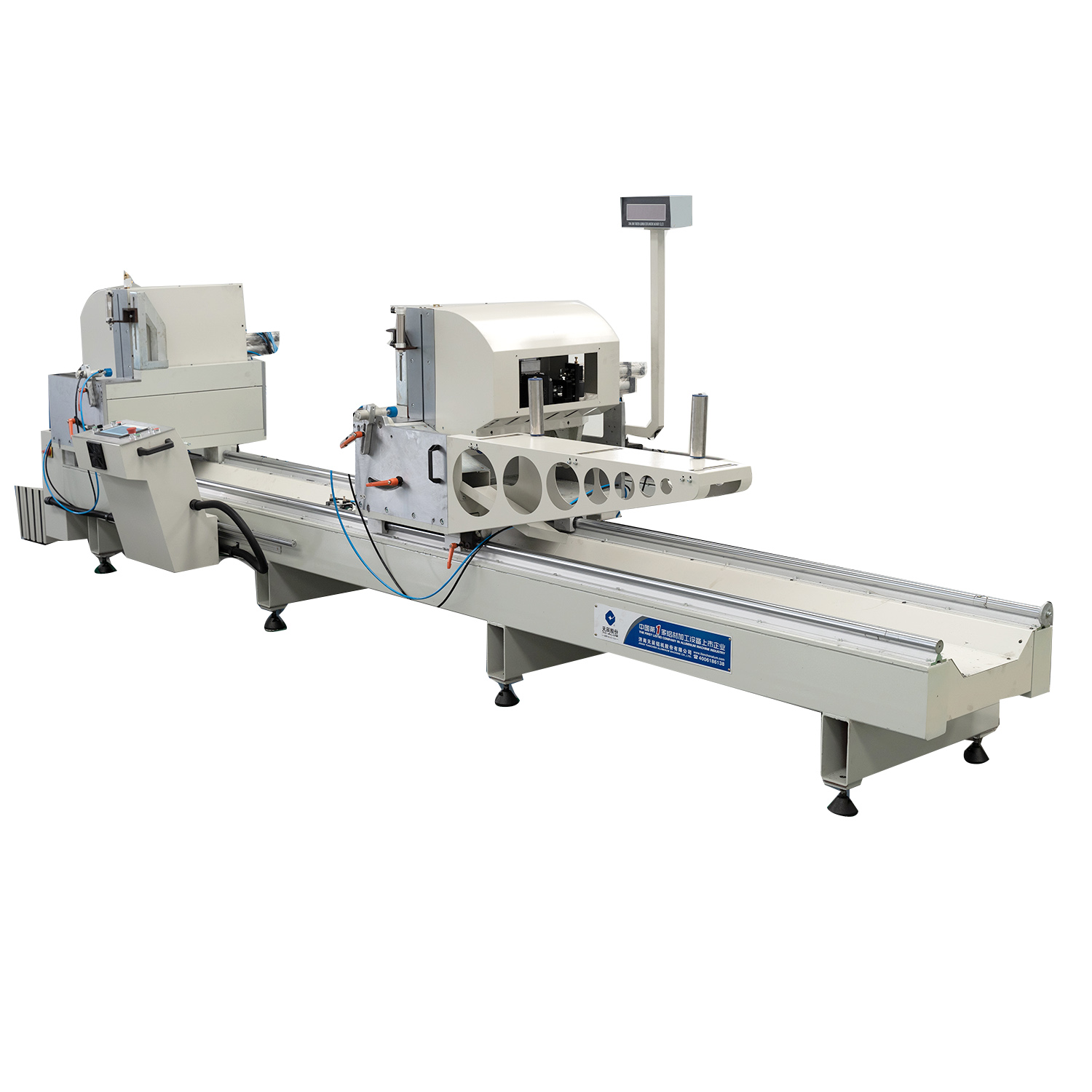

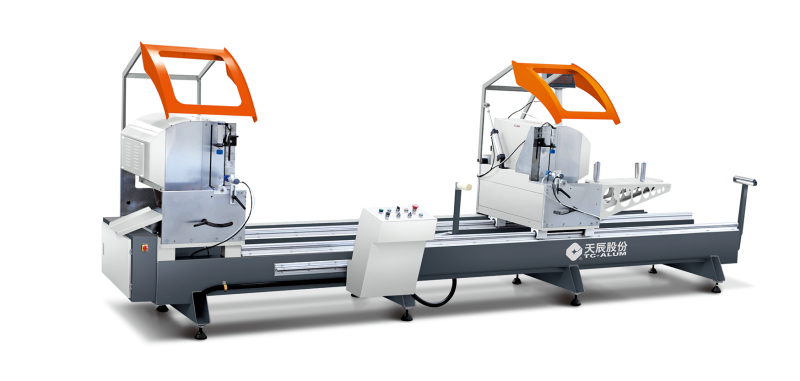

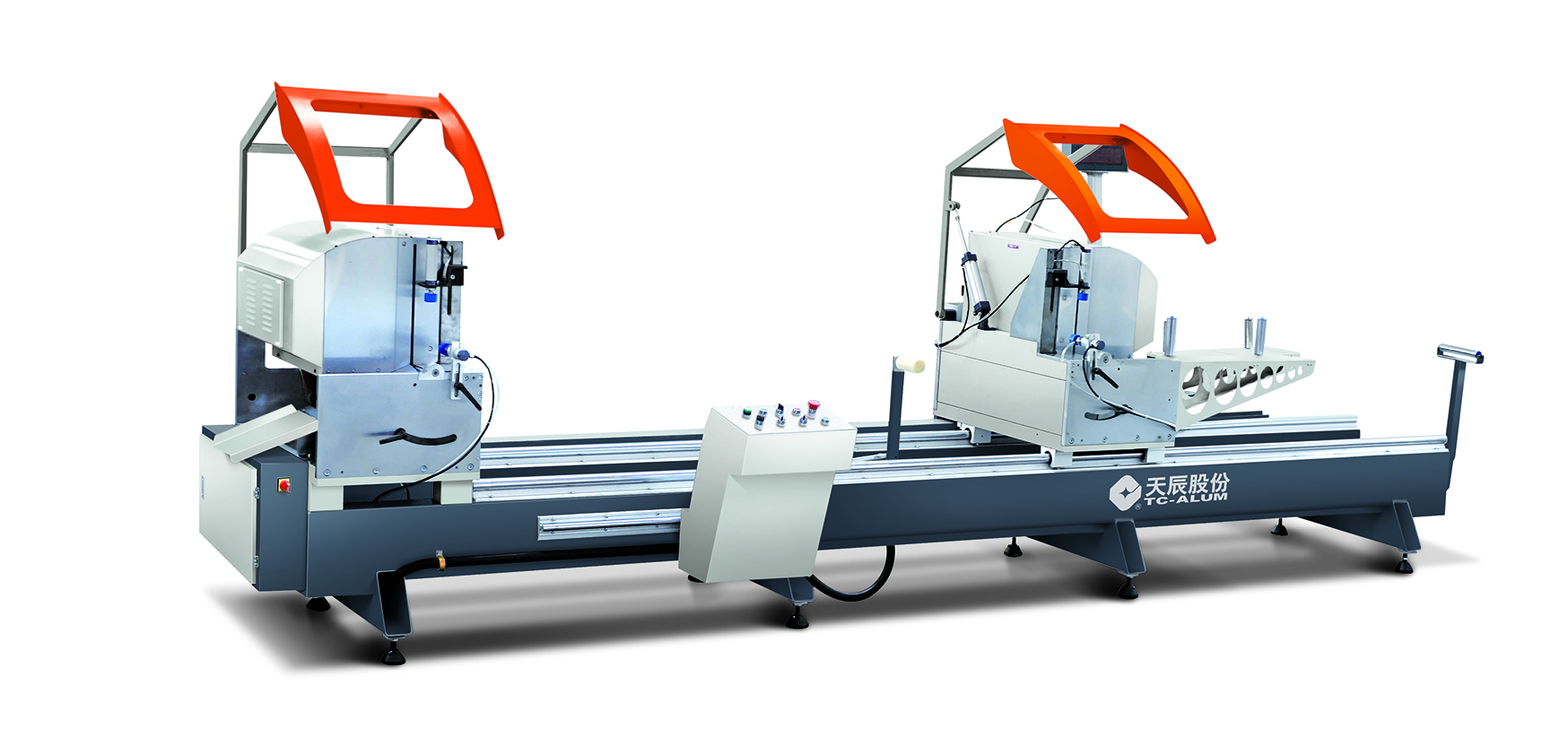

★ Applicable for cutting profile of aluminum windows and doors and curtain walls

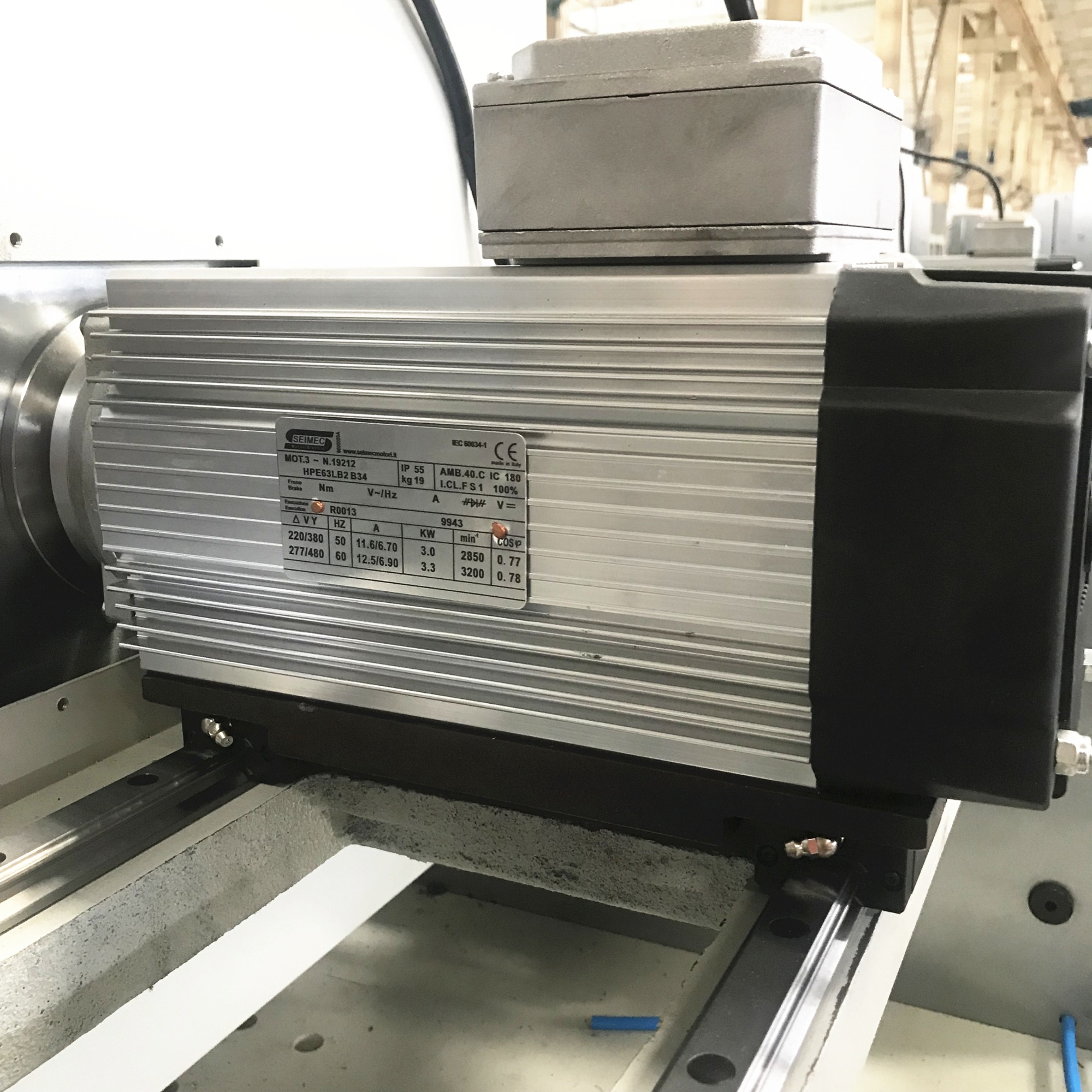

★ Imported cutting motor connects with saw blade; the saw blade feed adopts gas-liquid damping cylinder drive, with smooth cutting
★ Easy to operate and maintain, with reliable performance and advanced technology
★ Adopting SIEMENS control system, stable and reliable

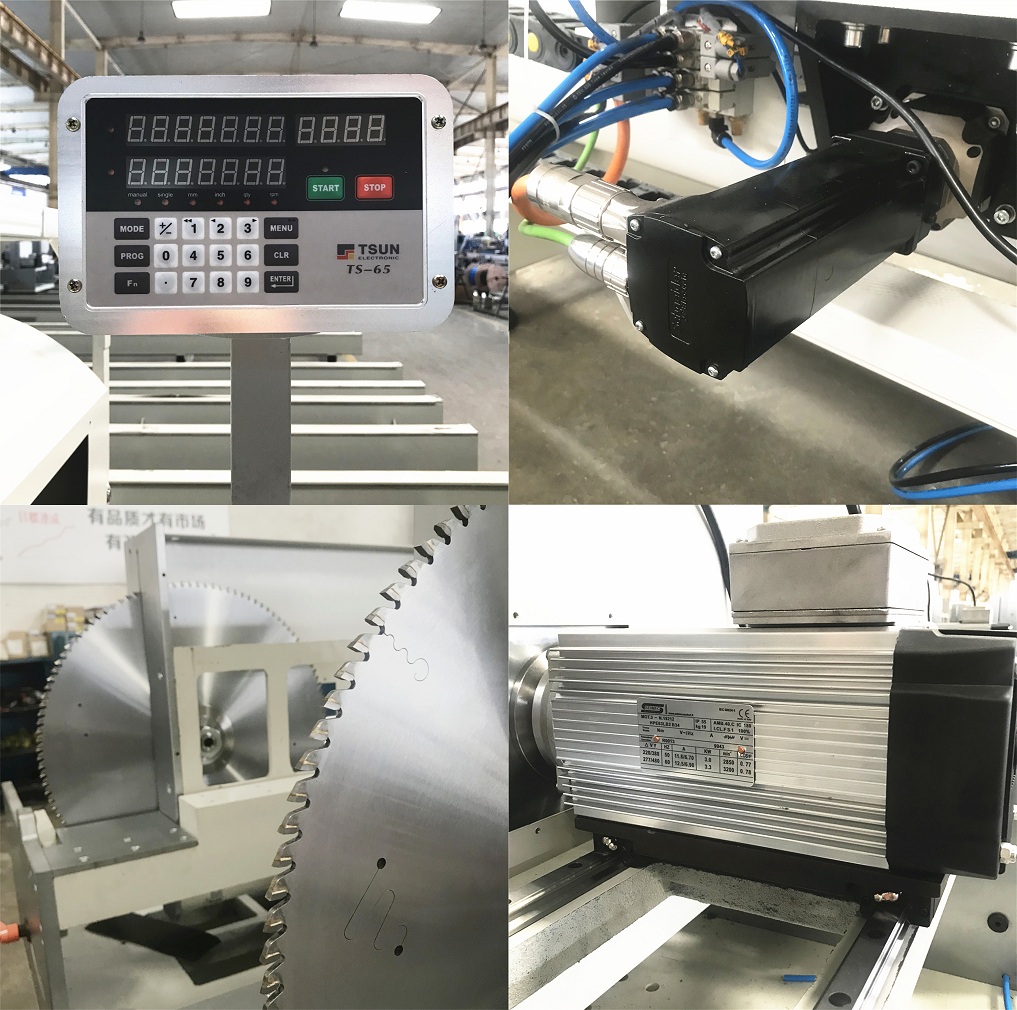

★ Using magnetic system for length scaling and digital display, with high precision

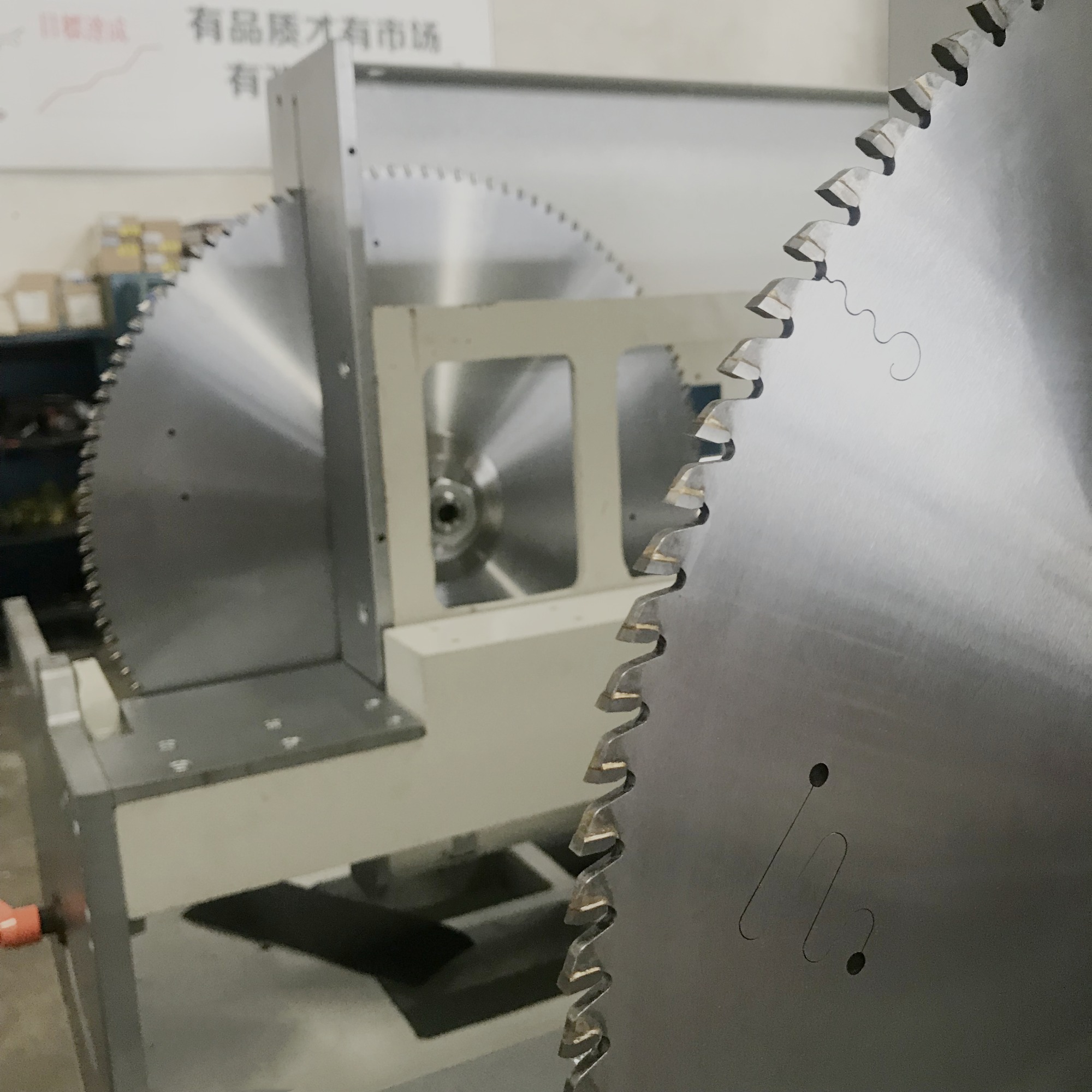

★ Imported carbide saw blade gives accurate processing and high efficiency
★ The follow-up supporter is space saving.
Technical Parameters
| Saw Head Motor Power | 2X3.0KW |
| Cutting Length | Max 4200mm, min 400mm |
| Cutting Width | Max 150mm |
| Cutting Height | Max 210mm 45° max 150mm 90° |
| Cutting Angle | 90°, 45° |
| Cutting Speed | Stepless speed regulation 0-3m/min |
| Blade Specification | φ500mm x 4.4mm xφ30mm z=120 |
| Repeat Locating length tolerance | ±0.2mm |
| Cutting Angle tolerance | ±5’ |
| Contour dimension | 6500x1700x1900mm |
| Weight | 2100kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
