Equipment Features

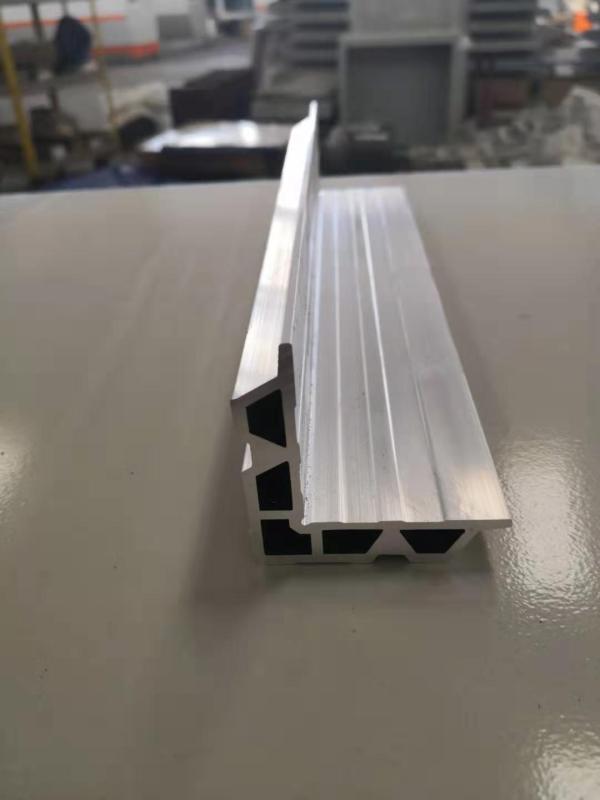

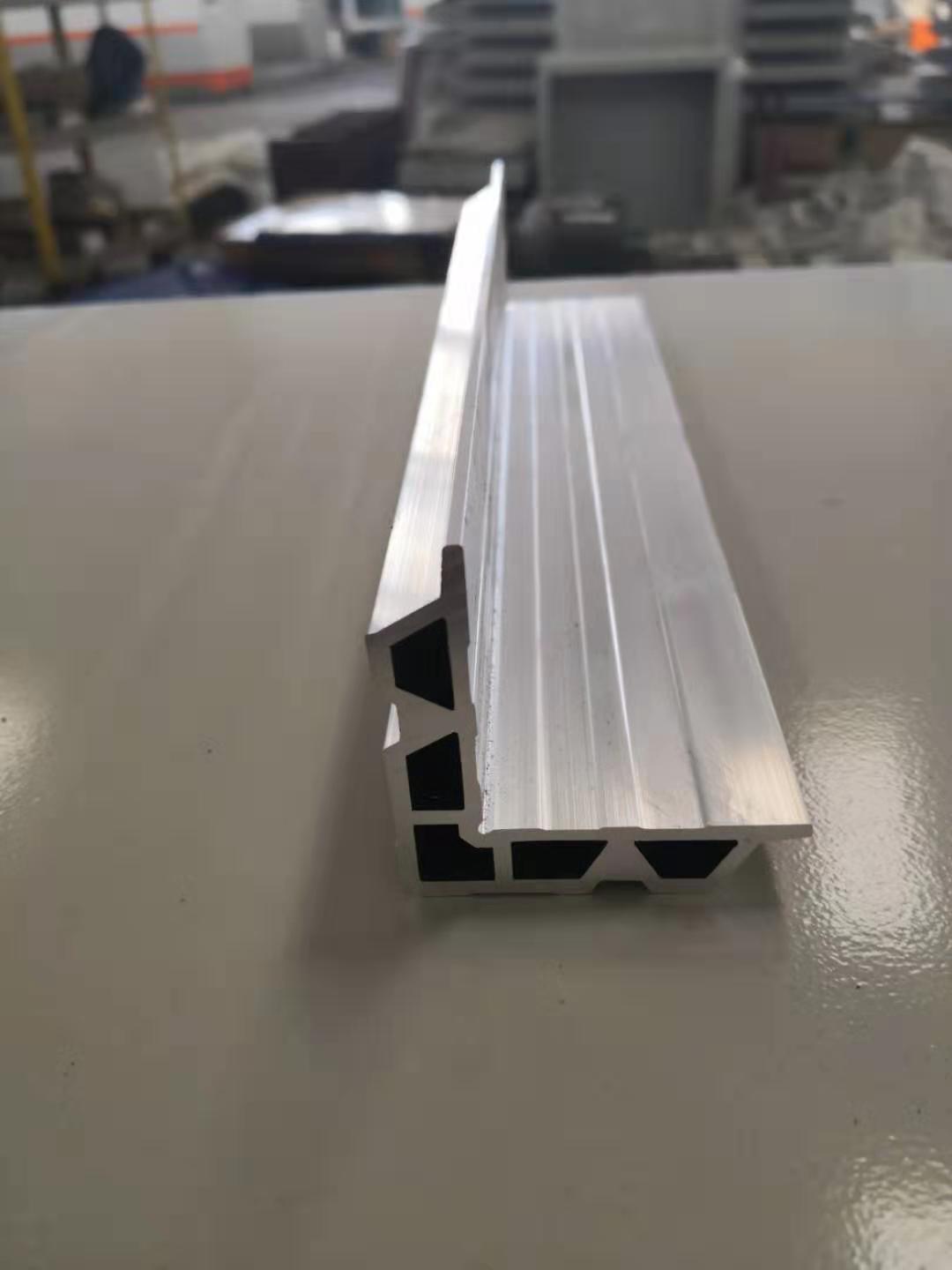

1. Used for corner connector of aluminum profile
2. Saw blade is made from horniness alloy driven by powerful motor. Profile cutting is high speed, high efficiency and high precision.
3. Operated easily, good performance, advanced technical. Easy maintenance
4. Schneider servo system connected with screw linear make the locating accurately.
| Auto-feeding length | 5~700mm |
| Cutting width×height | 120 ×120mm |
| Motor power | 3KW |
| Motor rev | 2840r/min |
| Power supply | 380V 50H |
| Blade specification | φ500×φ30×4.4×Z120 |
| Cutter feeding speed | 0 ~ 3m/min |
| Operation air pressur | 0.6～0.8MPa |
| Contour dimension | 5670×1770×1840 m |
| Weight | About750kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.

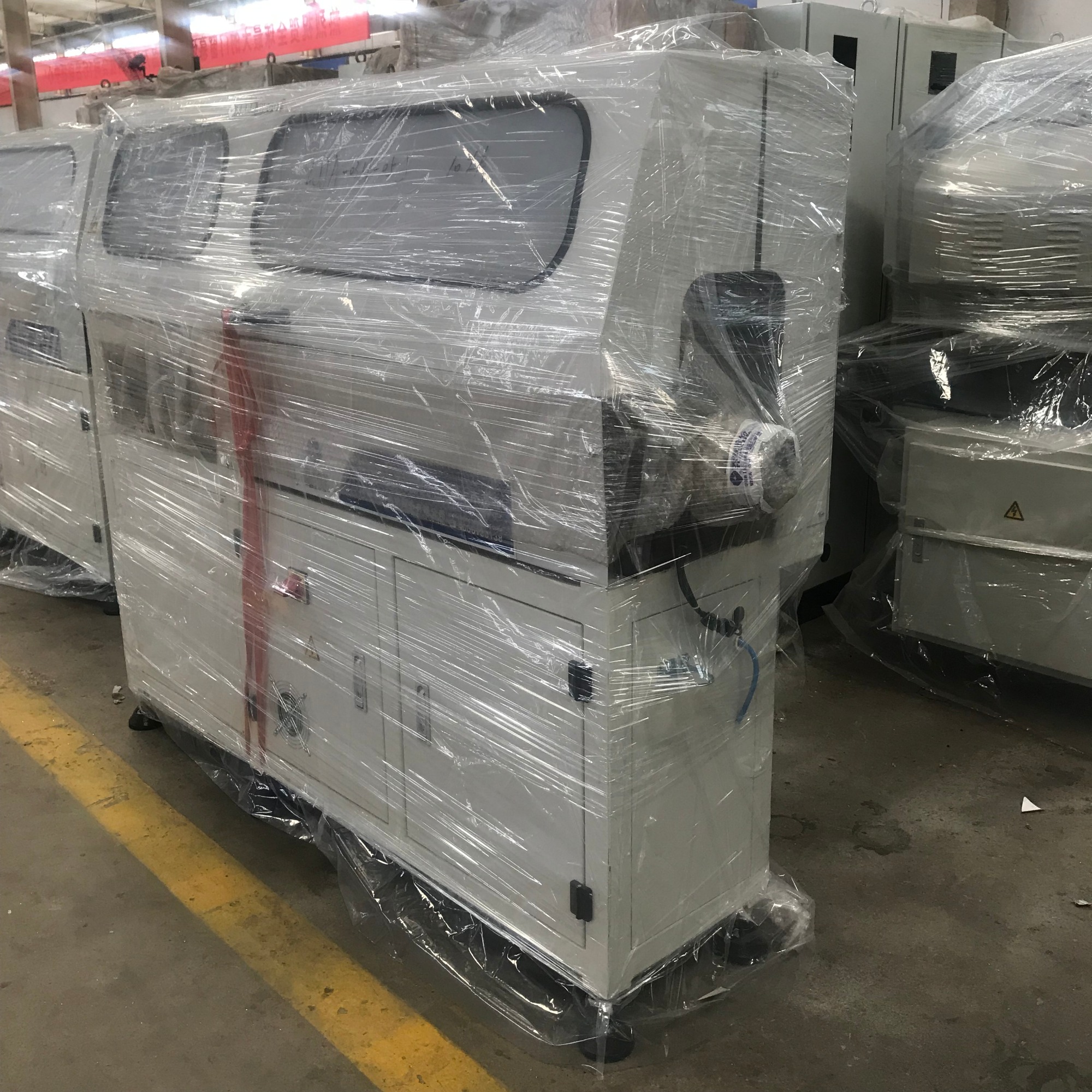

Packaging & Delivery
