Machine Features

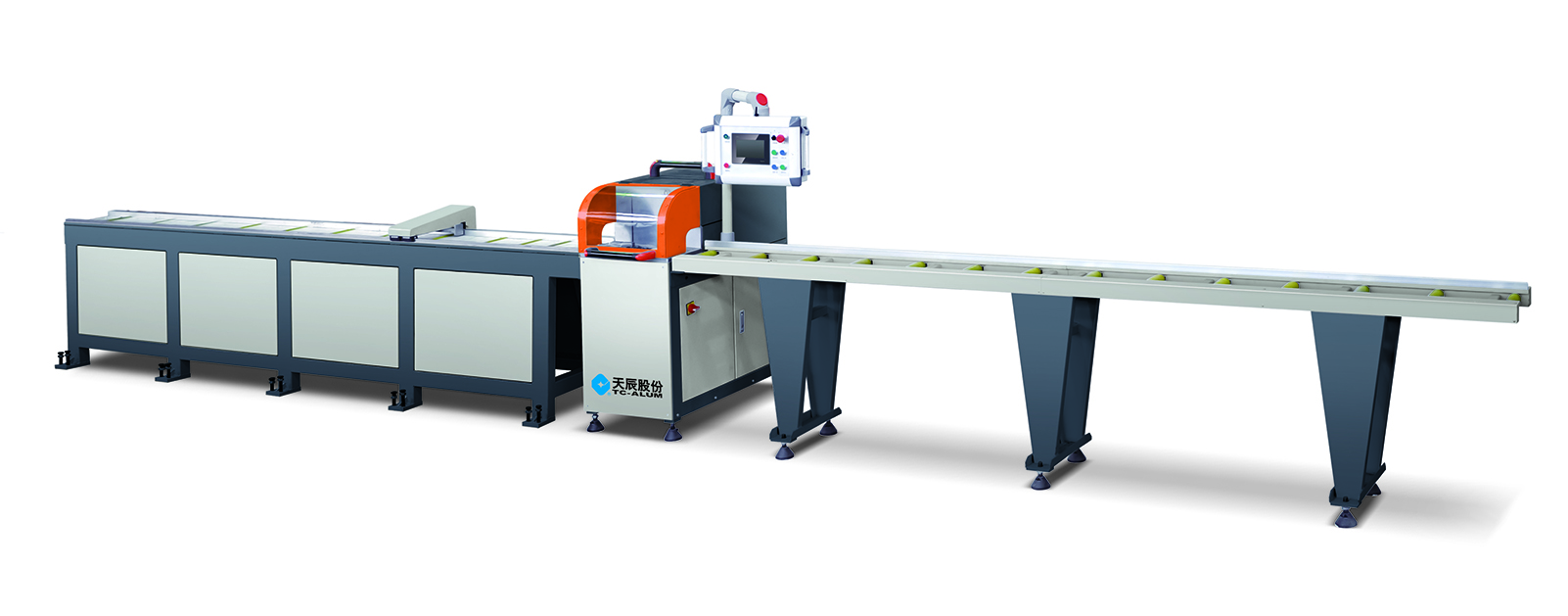

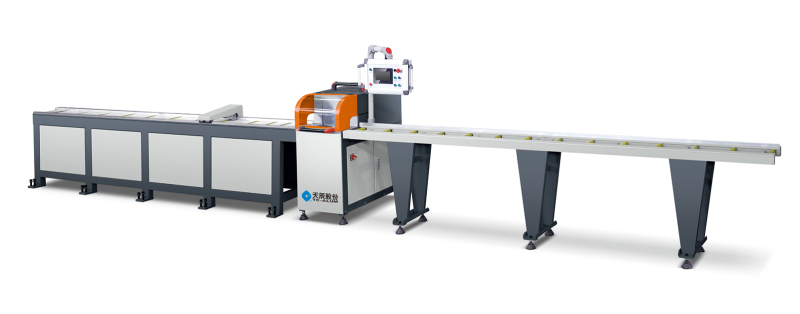

★ This machine is suitable for aluminum window & door’s glazing bead’s 90°cutting to length, with high cutting efficiency and high accuracy.
★ High level quality linear guide rail pair, Italian direct connection motor, to assure high cutting accuracy;
★ Mist spraying cooling way to cool the sawing blade, to improve the sawing blade tool’s lifetime and material’s section roughness；

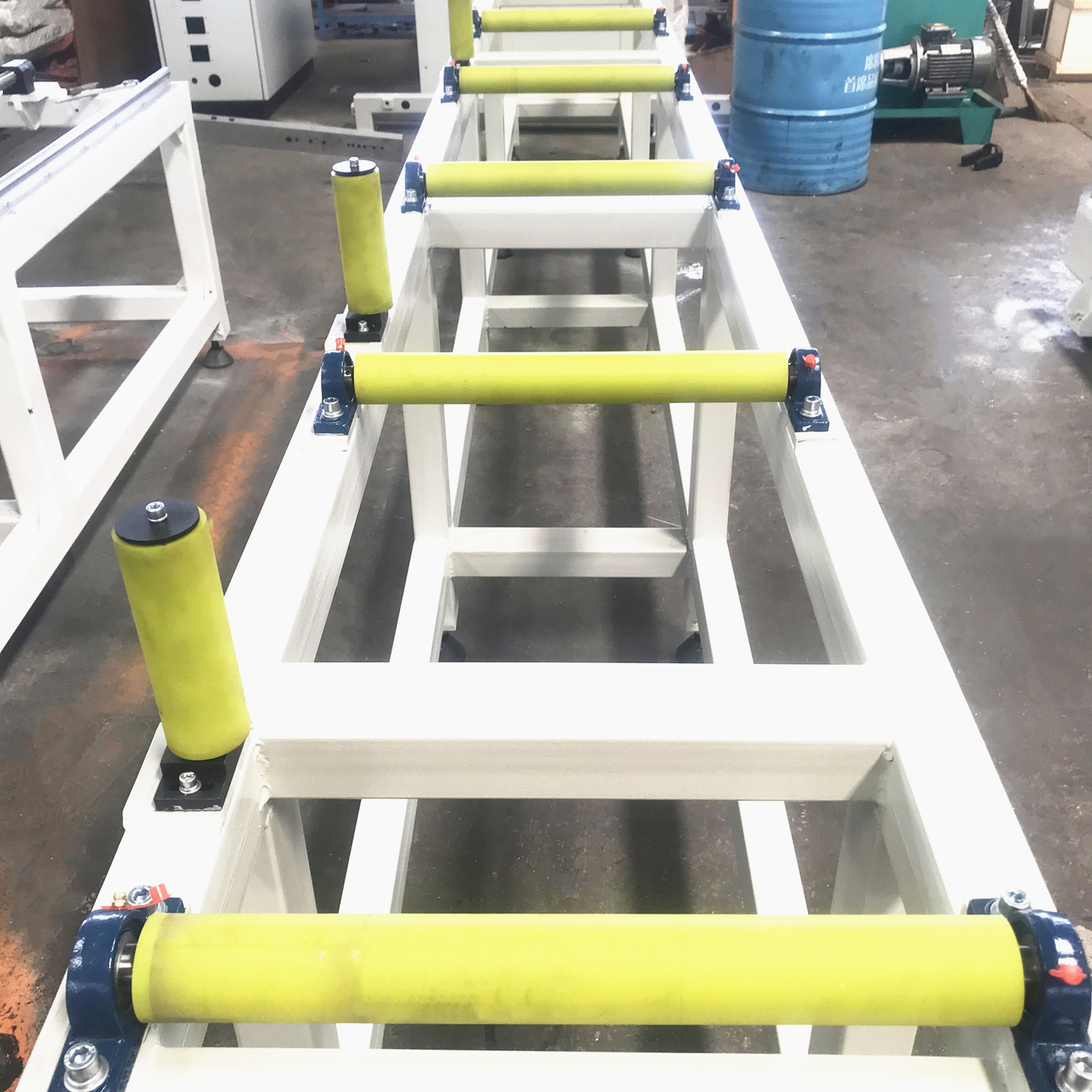

★ Rubber rollers, to protect the glazing bead away from damage；
★ Imported servo motor, high quality gear and rack and speed reducer to assure the positioning accuracy；
★ Wireless receiving capability, with matched high accuracy measuring rule hold by manually to really measure the inner port size of the window, and automatically convey the same to this machine,
then make the length scale device to accomplish the positioning and cutting, to improve the glazing bead’s assembly accuracy.
| Voltage | 380V 50HZ |
| Sawing motor power | 1.5KW |
| Servo motor power | 400W |
| Motor’s RPM | 2800r/min |
| Blade size | φ350×φ30×3.4×108Z |
| CNC Length scale range | 170～3000mm |
| Cutting section size | 48×75mm（W×H） |
| Length scale accuracy | ±0.1mm |
| Material supporting frame’s length | 4000mm |
| Overall dimension | 8500×1200×1500mm |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
Packaging & Delivery
FAQ
Q: What is the company's technical strength?
A:As an integration of scientific research, production and sales of high-tech enterprise, Jinan Tianchen Aluminum Machine Corp., Ltd. is the most professional manufacturer providing one-stop solution for processing machines of aluminum windows, doors, curtain walls and industry aluminum profiles, etc. with large sales and wide service net and most complete products types.
Q: Which machine should I choose?
A: Tell us your specific requirements for the machine; we will give you perfect suggestions and solutions.
Q：Which models are the main products?
A： Automatic Lines; Cutting Saw; Milling and Drilling Machine Center; Copy Router Milling Machine; Aluminum Formwork Processing Machines.
Q: How to use the machine, what should I do if problems occurred to the machine?
A: You can refer to the user's manual or instructions delivered along with the machine; if anything unclear, please feel free to contact us. We will support you by email, telephone or instant messengers. If still have difficulties, we offer oversea installation, maintaining and training service.
Q: Which payment method do you accept?
A: We accept T/T, L/C and etc.
Q: How long is the warranty of youraluminium machine?
A: The warranty period is one year.
Q: What is the delivery time?
A: The delivery time differs depend on the machine model and the order quantity. Usually the delivery time shall be 7-25 working days after deposit.
