Features & Advantages

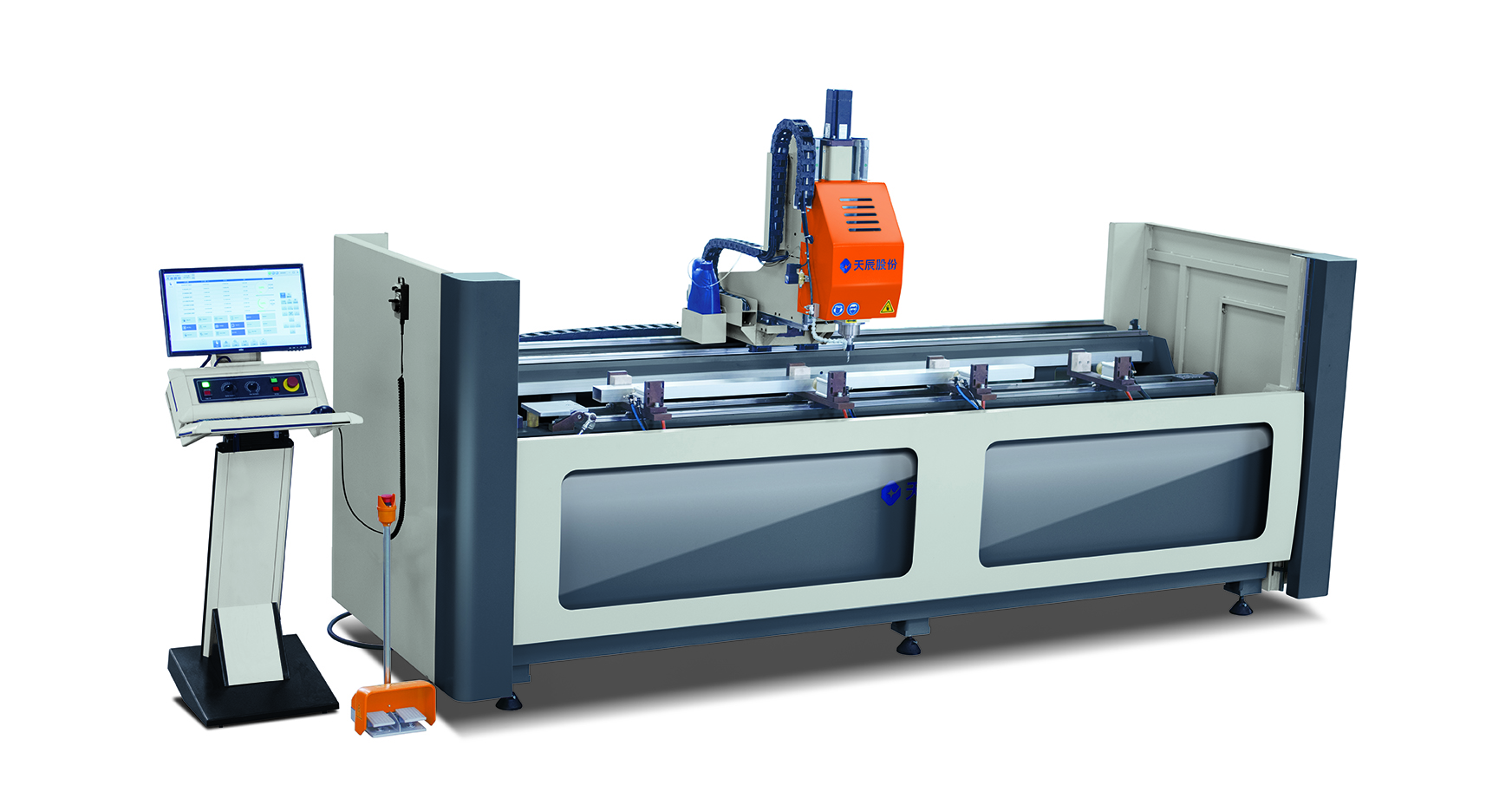

1. Used to milling different size holes and grooves of aluminum profile, especially suitable for the processing door lock.
2. It adopts ball bearing movement device, high precisiom guide liner, rack and pinion and servo motor; insure the sutable movement with high precision position and operation. X-axis is freven by rack and pinion, Y and Z axis is driven by guide screw.
3. It adopts imported high speed main axis motor, stable rotation, low noise, and strong milling ability.
4. Worktable can be turned from -90°、0° and +90°to realize one time clamping three surface milling.
5. It adopts PLC, Intelligent Integrated Numerical Control System, concision and vivid human and machine interface to have easy operation.
Main specification and technical parameters
| Power supply | 380V/50Hz |
| Air supply | 0.5～0.8MPa |
| Air consumption | 40L/min |
| Main axis rev./power | 18000rpm/4.5KW |
| Total power | 9kW |
| Tool chuck | ER25-φ8mm |
| Processing size range | 100x100x2500(mm) |
| Working position | -90°、0°、90° |
| X-way journey | 2500mm |
| Y-way journey | 330mm |
| Z-way journey | 300mm |
| X-axis speed | 0～60m/min |
| Y-axis speed | 0～30m/min |
| Z-axis speed | 0～30m/min |
| Dimension（L×W×H） | 4000x1600x2000(mm) |
| Weight | About 1400kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
