Equipment Features

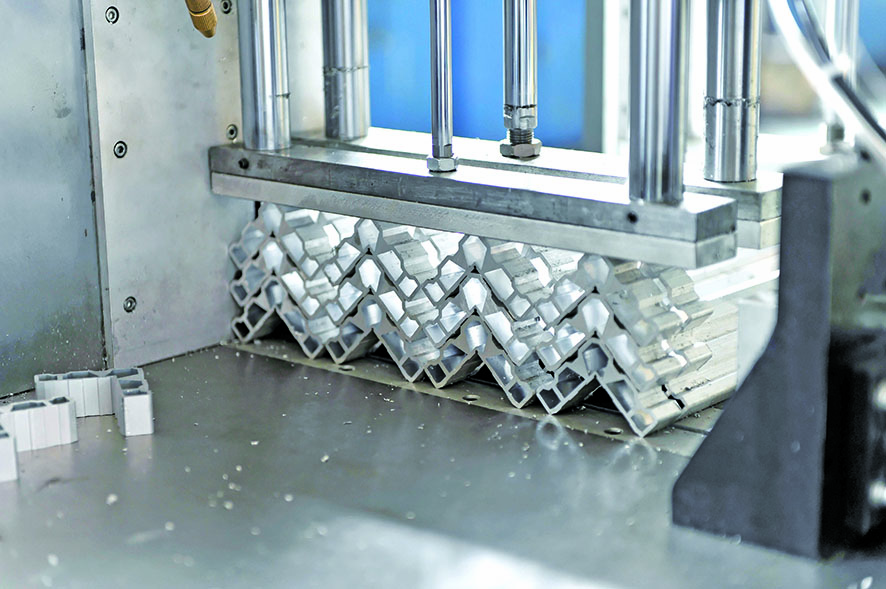

1. Corner connector profile cut in batch quantity and batch size 90°.
2. Cutter is made from horniness alloy driven by powerful motor profile cutting is high efficiency and high precision.
3. Operated easily, good performance, advance technical, easy maintenance.
4. Siemens servo system connected with screw linear make the locating accurately, spermatic.
5. Siemens touch screen easy to operate.
6. Blade feeding is driven by airdraulic damping cylinder. Cutting smoothly and reliable.
Technical Parameters
| Power supply | 380v 50Hz |
| Cutting motor | 5.5kW 1400rpm |
| Cutting motor | 0.75 servo motor |
| Operation air pressure | 0.5～0.8MPa |
| Single feed length | 0～1300mm |
| Min residual | 200mm |
| Cutting angle | 200×200mm 、150×365mm、100×420mm (H×W, ø600mm saw blade ) |
| Cutting feeding speed | Stepless speed regulating 0-200mm/s |
| Saw blade specification | ø600mm、ø550mm、ø500mm（Optional） |
| Plate diameter | ø160× ø30mm |
| Repeat locating length tolerance | ±0.1mm |
| Cutting angle tolerance | ±5′ |
| Cutting profile surface roughness | Ra6.3µm |
| Contour dimension | 3200 mm×1800mm×1600mm（Without supporter） |
| 8200 mm×1800mm×1600mm（With supporter） | |
| Weight | About 2700Kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
