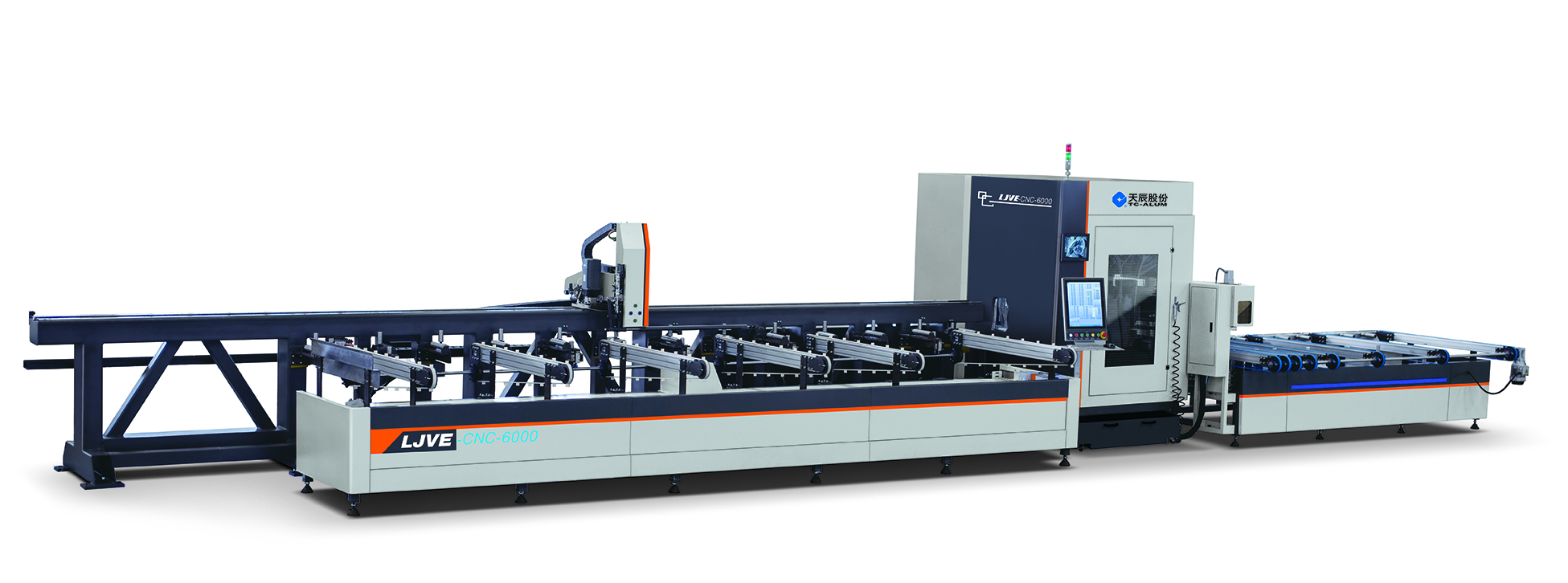

Features & Advantages
1. High effectively cutting aluminum profile at 45°or 90°.
2. The auto worktable continuous feeding and clamping profile.
3. It adopts high precision straight guide rail pair to ensure stability and reliable operation.
4. Load mechanical arm adopts Siemens servo drive can reach to three axis (X, Y, Z) auto control. Imported high precision gear rack drive to ensure reliable feeding.
5. Blade connected with imported motor. Cut smooth, steady and high precision.
6. Siemens control system makes machine working steady and reliable.
7. It can complete the 45°cutting through up and down saw blade respectively cutting, high cutting precision, which can avoid partial breakage of profile.
8. It can continuously complete profile ±45° or 90° cutting, high processing efficiency.
9. Unload mechanical arm adopts servo driver, which can realize fast unloading, positioning function and be able to reach the auto output of the shortest profile 260mm.
10. Roller linear guide pair and ball screw equipped with auto lubrication system, improve the precision and service life.
11. Hinge type constantly conveys scrap and aluminum scrap to the outside.
12. The totally enclosed safety cover to ensure the personal security.
13. Option: Profile lifting platform to achieve the single person feeding operation
14. Option: Bar code printer for E-works.
| Power supply | 3×3.0 kW |
| Machine total power | 18kW |
| Power supply | 380V/50Hz |
| Operation air pressure | 0.6～0.8MPa |
| Air consumption | 150L/min |
| Blade specification | Ф550×Ф30×4.4×120T |
| Cutting height | 30～150 mm |
| Cutting width | 30～100 mm |
| Raw materials | 290～6500 mm |
| Cutting angle deviation | ±5′ |
| Length deviation | ±0.15mm |
| Repeat locating length deviation | ±0.05mm |
| Contour dimension | 14000×5000×2500 mm |
| Weight | About 7000 kg |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
