Features & Advantages
★ Applicable to any two-dimensional composite angle cutting of large-section aluminum profiles;
★ Five-axis full-closed CNC system is adopted to ensure the positioning accuracy of the rotation angle and length;

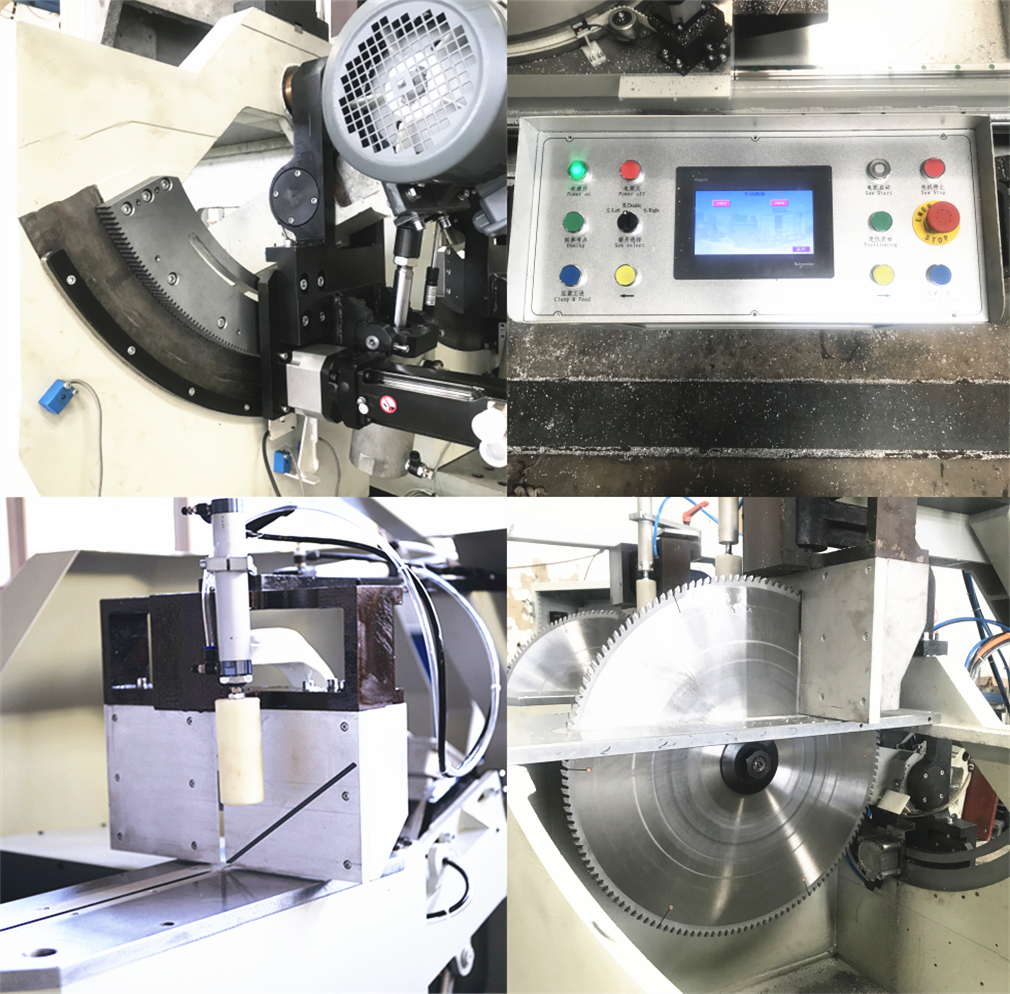

★ The movable cutting saw head adopts linear guide pair and gear rack transmission to ensure the rigidity and positioning accuracy of the transmission;
★ The machine head rotates with precision crossed cylindrical roller bearings, and the rotation is stable and reliable;
★ The enhanced rocker arm structure makes the cutting more stable and the cutting effect is better;

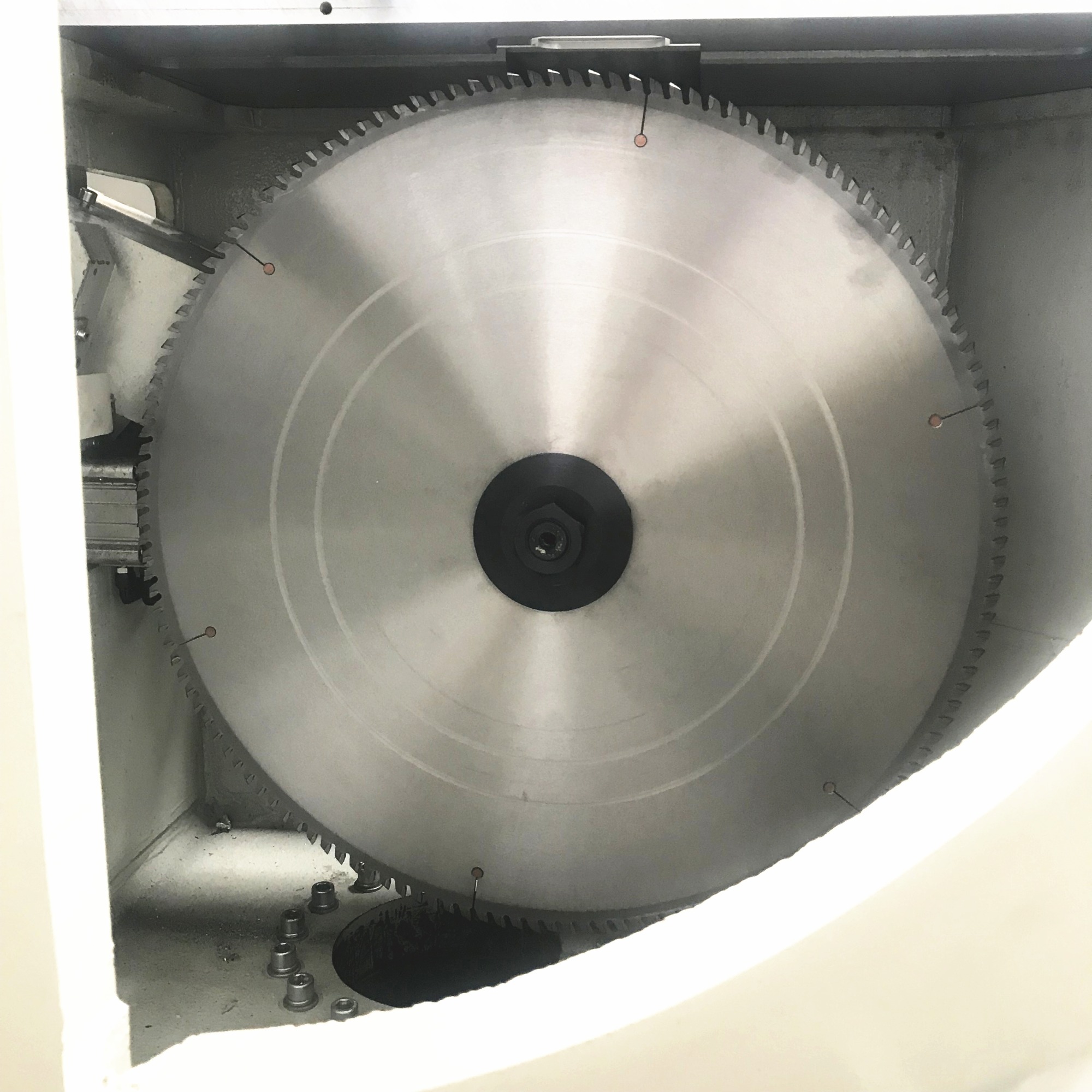

★ The saw blade swings out under the work table, the cutting is smooth, and the cut surface of the profile is smooth;
★ Lubrication and cooling device that moves with the saw blade, effectively improving the cutting quality and the service life of the saw blade;
★ The pneumatic positioning brake and the compressing of the profile ensure the cutting stability;
★ With automatic lifting intermediate carrier and follow-up carrier for long profile support.
| Power supply voltage | 380V±10% 50Hz±2% three-phase four-wire system |
| sawing motor power | 3kW 2800rpm |
| Working pressure | 0.6~0.8MPa |
| Saw blade specifications | Φ600 × Φ38 × 4.8 × 4.2 × 144P |
| Saw blade angle | 45°～90° arbitrary angle |
| Table rotation angle | 45 ° ~ 135 ° arbitrary angle |
| Cutting Section range | 200mm × 200mm (cutting angle at 90°, width × height, see the cutting section range) |
| Cutting length | 700mm～5000mm ( Blade feed rate: 0~3m/min) |
| Cutting surface roughness | ≤ Ra12.5μm |
Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
